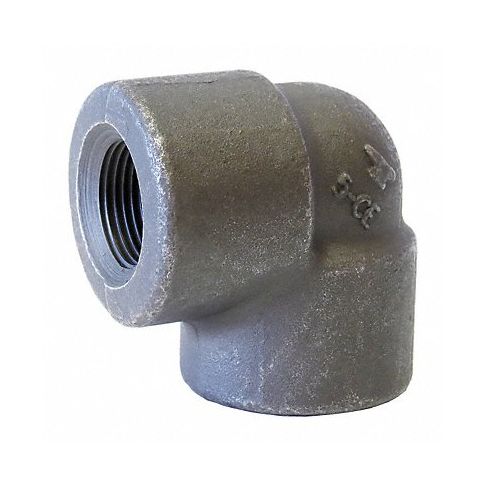

90 Elbow Forged Steel 1/2 in FNPT MPN:0361100803
SKU
226-CXG-29JD69
90 Elbow Forged Steel 1/2 in FNPT
This forged steel 90-degree elbow offers superior performance and durability, making it an ideal choice for various plumbing, HVAC, and industrial applications. The threaded design ensures tight connections that resist leaks or losses of pressurized fluids, ensuring reliable operations in demanding environments. Its rugged construction stands up to wear and tear while maintaining a consistent flow rate without any pressure drop. This product is designed to provide easy directional change, allowing for a quick installation process, and its versatile nature makes it suitable for different industries that require precise and dependable fluid control systems.
Thick-walled fitting offers you a simple, economical installation and is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.
Technical Specifications
- Item Elbow, 90 Degrees
- Pipe Fitting Material Black Forged Steel
- Fitting Schedule/Class Class 3000
- Pipe Size - Pipe Fitting 1/2 in
- Fitting Connection Type FNPT
- Standards ASME B16.11, ASTM A106, B1.20.1
- Max. Pressure 2000 psi @ 150 Degrees F
- Saturated Steam Pressure 300 psi @ 550 Degrees F
- Outside Dia. 1 1/2 in
- Number of Holes 2
- Temp. Range -20 Degrees to 550 Degrees F
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0361100803
- MPN: 0361100803
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307110030
- GDS Category Name: Metal Pipe Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pipe Fittings and Couplings
