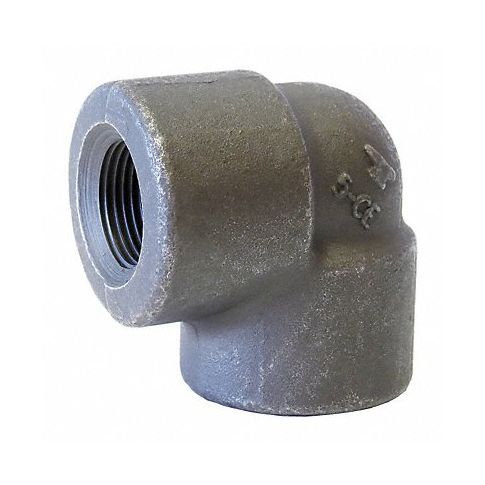

90 Elbow Forged Steel 1/4 in FNPT MPN:0361100407
SKU
226-CXG-29JD67
90 Elbow Forged Steel 1/4 in FNPT
90 Elbow Forged Steel 1/4 in FNPT is a versatile and robust component made of forged steel, making it ideal for demanding applications where durability is paramount. Its 90-degree bend design allows for easy installation and can be used in various piping systems, including steam, gas, and liquid transfer lines. The forged construction ensures strength and resistance to wear, corrosion, and stress, making it suitable for applications in industries such as manufacturing, construction, chemical processing, and wastewater treatment. Its pressure rating makes it ideal for use with high-pressure systems and provides reliability and longevity in demanding environments.
Thick-walled fitting offers you a simple, economical installation and is ideal for use with water and oil in chemical, petrochemical, pulp, paper, shipbuilding, waste incineration, and semiconductor industry applications.
Technical Specifications
- Item Elbow, 90 Degrees
- Pipe Fitting Material Black Forged Steel
- Fitting Schedule/Class Class 3000
- Pipe Size - Pipe Fitting 1/4 in
- Fitting Connection Type FNPT
- Standards ASME B16.11, ASTM A106, B1.20.1
- Max. Pressure 2000 psi @ 150 Degrees F
- Saturated Steam Pressure 300 psi @ 550 Degrees F
- Outside Dia. 1 in
- Number of Holes 2
- Temp. Range -20 Degrees to 550 Degrees F
Manufacturer Details
- Manufacturer: Anvil
- Condensed Mfg Number: 0361100407
- MPN: 0361100407
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307110030
- GDS Category Name: Metal Pipe Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40142317
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Pipe elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
