Phase Sequence/Motor Rotation Tester MPN:PRM-6

An essential tool to verify proper connections and installation of 3-phase motors and systems, the Amprobe® PRM-6 can test motor rotation and phase sequencing with traditional test leads or wirelessly, to help prevent damage to the motor and the equipment it powers.
This phase sequence and motor rotation tester can safely, easily, and reliably help you check both power sources and motors, and identify faulty 3-phase wiring with incorrectly wired receptacles or de-energized phases. Motor rotation direction can be tested on both synchronous and asynchronous motors.
With test leads, the PRM-6 can test motor rotation and verify 3-phase receptacle wiring and phase sequencing. With wireless detection, it can sense motor rotation direction on fast-running motors and when the drive shaft is not visible. For disconnected motors, it indicates motor rotation when you spin the shaft by hand or other method.
The bright backlit LCD has easy-to-read symbols for left/CCW or right/CW motor rotation, L1/L2/L3 inputs, and error display for missing phase and input connected to neutral or excess voltage difference between phases.
The durable rubber casing and CAT IV 600V safety rating are well-suited for testing on electrical systems up to 700V in commercial and industrial settings.

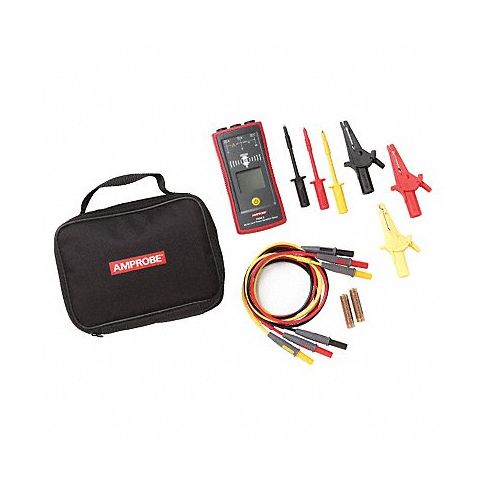

The handy carrying case keeps the tester together with necessary leads, probes, and alligator clips.

Technical Specifications

• Item Phase Sequence Motor Rotation Tester
• Voltage Range 40 to 700V AC
• Frequency Range 16 to 400Hz
• Display LCD
• Safety Rating CAT IV 600V
• Motor Rotation Yes
• Phase Rotation Yes
• Phase Voltage Present Indicator No
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Amprobe
• Condensed Mfg Number: PRM6
• MPN: PRM-6

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030390100
• GDS Category Name: Phase Sequence and Motor Rotation Testers
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113602
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Phasemeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
