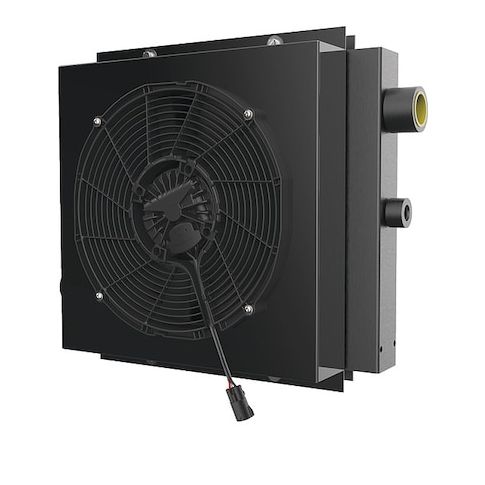

Forced Air Oil Cooler, DC Motor MPN:DCSB16-24-BP65-3
Forced Air Oil Cooler, DC Motor
This Forced Air Oil Cooler is designed to efficiently cool hydraulic systems in demanding applications. Powered by a 24V DC motor, it can handle flows up to 50 gpm and pressures up to 250 psi. With a compact design and IP 68 motor frame, it's ideal for use in harsh environments. The cooler is suitable for applications such as construction equipment, agricultural machinery, and industrial manufacturing. Its high flow range and low amp draw make it a reliable choice for operators who require consistent performance in heavy-duty operations. It's also a cost-effective solution for reducing oil temperatures and prolonging system lifespan.
Top product features:
- Forced Air Oil Cooler
- Removes 20 hp of heat
- Operates on 24V DC power
Top product applications:
- Hydraulic Power Units
- Industrial hydraulic pumps and systems
- Mobile hydraulic equipment
Forced Air Oil Cooler, HP Heat Removed 20 hp, Voltage 24V DC, Number of Phases 1, Max. Flow 50 gpm, Max. Pressure 250 psi, Inlet Port Thread Size SAE #16, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #16, Outlet Port Thread Gender Female, Overall Height 13.5 in, Overall Width 7.4 in, Overall Depth 7.4 in, Flow Range 10 to 50 gpm, 27 A Full Load Amps, Motor Frame Size IP 68, Motor Type - Oil Coolers DC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 7.40
- Package Height: 13.50
- Package Weight: 29.00
Product info last updated on March 12, 2026 10:31am UTC
Category: Hydraulic Cylinders and Equipment
