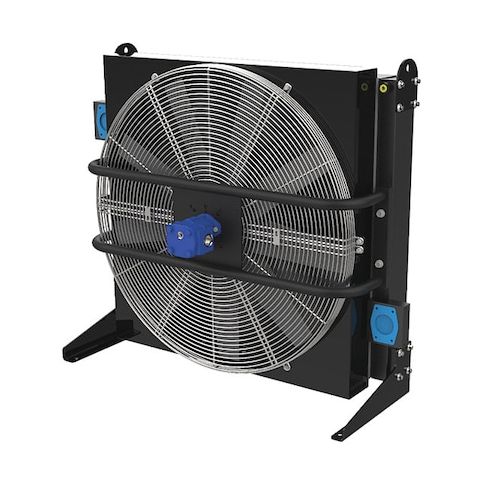

Forced Air Oil Cooler, Hydraulic Motor, HR400-0195, 20 to 350 gpm, 400 hp Heat Removed MPN:HR400-0195
Boost your hydraulic system's performance with the Akg Oil Cooler, featuring a hydraulic motor that efficiently cools oil and maintains optimal system pressure. Ideal for applications requiring high flow rates, this oil cooler can handle up to 350 GPM and withstand pressures of up to 377 psi. Suitable for heavy-duty industries such as construction, manufacturing, and agriculture, it also features a compact design for easy integration into existing systems. With its reliable gear-type hydraulic motor and robust construction, this oil cooler ensures consistent performance and extends the lifespan of your hydraulic equipment.
Top product features:
- Forced Air Oil Cooler design removes heat from high-pressure hydraulic systems
- Hydraulic motor is a gear type with a displacement of 1.950 cu in
- Oil cooler has a flow range of 20 to 350 gpm
Top product applications:
- Heavy Duty Construction Equipment
- Industrial Manufacturing Machinery
- Large Agricultural Equipment
The AKG HR400-0195 is a forced air oil cooler with a hydraulic motor, built for hydraulic and fluid power systems requiring dependable heat removal in demanding industrial and mobile equipment applications. Designed to handle coolant flow rates from 20 to 350 gpm, this unit can remove up to 400 hp of heat to help maintain proper operating temperatures and protect system performance. It features an aluminum heat exchanger, 3 in SAE 4-bolt flange coolant ports, a hydraulic gear motor with 1.95 cu. in./rev displacement, and a durable black painted finish. The cooler also includes mounting feet for installation and uses a polypropylene fan blade with a steel fan guard for added durability.
Key Features:
- - Forced air oil cooler with hydraulic motor for hydraulic and fluid cooling applications.
- - Handles coolant flow rates from 20 to 350 gpm.
- - Removes up to 400 hp of heat for efficient thermal management.
- - Aluminum heat exchanger provides durable and effective heat transfer.
- - 3 in SAE 4-bolt flange coolant ports support secure system connections.
- - Maximum coolant pressure: 250 psi.
- - Maximum oil pressure: 3,500 psi.
- - Minimum motor oil pressure: 1,170 psi.
- - Maximum operating temperature: 250 degrees F.
- - Hydraulic gear motor features 1.95 cu. in./rev displacement.
- - Motor flow rate: 16.4 gpm.
- - SAE #16 motor ports.
- - Polypropylene fan blade with steel fan guard helps provide reliable airflow and protection.
- - Black painted finish for added durability.
- - Includes mounting feet for installation.
- - Overall dimensions: 49.49 in W x 20.79 in D x 46.96 in H.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 62.00
- Package Width: 60.00
- Package Height: 31.40
- Package Weight: 590.00
