Push to Connect Fitting, Stainless Steel, Silver MPN:60005-4-1/8

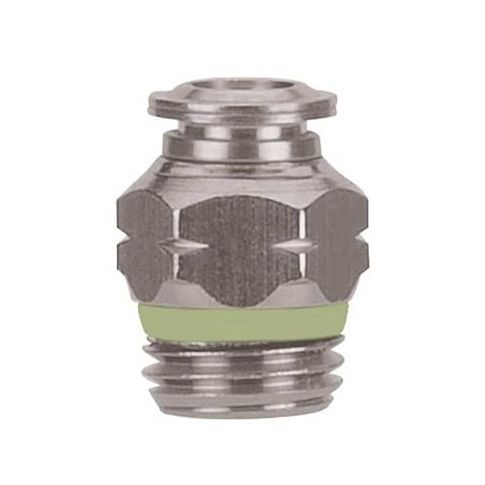

Push to Connect Fitting, Stainless Steel, Silver
The Push to Connect Fitting from Aignep USA is a reliable and efficient solution for vacuum applications. Made from high-quality stainless steel, this fitting features a push-to-connect design that makes installation quick and easy. With a maximum operating pressure of 290 psi and temperature of 374°F, it can handle demanding conditions. The pre-applied thread sealant ensures a secure connection, while the universal connection type allows for flexibility in tubing sizes. Suitable for use in medical, laboratory, and industrial settings, this fitting is a valuable addition to any vacuum system, providing a leak-free connection and reducing maintenance needs.
Top product features:
- Push-to-Connect design allows for easy and secure connection to fittings
- Pre-applied thread sealant ensures a leak-free connection
- Operating pressure of 290 psi and temperature of 374 Degrees F enable use in high-pressure vacuum applications
Top product applications:
- Vacuum applications
- Stainless Steel, Silver fittings are ideal for use in vacuum systems due to their corrosion resistance and ability to withstand high vacuum pressures.
- The push-to-connect design of the fitting makes it easy to connect and disconnect tubes, reducing the risk of contamination and damage to the system.
Push-Fit Adapter Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Universal, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 4 mm, Fitting Side B Tube Outer Diameter 8 mm, Fitting Material Stainless Steel, Fitting Thread Size 1/8, Material Grade 316, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 374 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 6.20
- Package Height: 0.50
- Package Weight: 0.03
Product info last updated on February 3, 2026 4:08pm UTC
Category: Pipes, Valves and Fittings
