Power Quality Analyzer 10000A Max MPN:8336 W/4 193-24-BK

Buy AEMC item #8336 W/4 193-24-BK from our huge selection of Electrical Testing Tools to show your support for our 🗽 Patriotic Veteran-Owned Business.

Technical Specifications

• Item Power Quality Analyzer
• Phase 3
• Max. Watts 9999kW
• Kit Current Capability 1 to 6000A
• Max. VA 10MVA
• Max. AC Amps 10,000 A
• Max. DC Amps 1,000 A
• Current Accuracy Dependent on Current Probe Used
• Current Channels 4
• Max. AC Voltage 1,000
• Max. DC Voltage 1000V
• Voltage Accuracy +/-0.5%
• Voltage Channels 5
• Calibration Frequency 40 to 69 Hz
• Power Factor 0 to 1
• AC Response True RMS
• Display Color TFT
• Display Resolution 320 x 240
• Harmonic Capture Range 50th
• Min. Transient Duration 65 uS
• Sampling Rate 200 kHz
• Crest Factor I=6.5, V=6.5
• Safety Rating CAT IV 600V
• Data Logging Yes
• Peak Capture Yes
• Storage 32 GB
• Calibration Certificate None

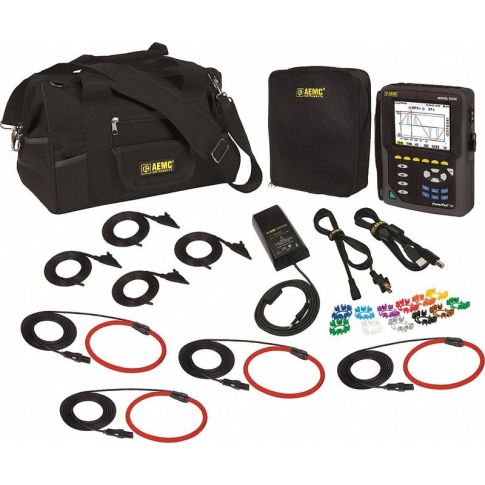

• Includes Carrying Bag, Power Adapter with Power Cord, USB Cable, Voltage Leads with Alligator Clips
• Manufacturers Warranty Length 3 yr

Manufacturer Details

• Manufacturer: AEMC
• Condensed Mfg Number: 8336W419324BK
• MPN: 8336 W/4 193-24-BK

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: FR
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030390100
• GDS Category Name: Power Quality Analyzers Loggers and Recorders
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113708
• UNSPSC Class ID: 37
• UNSPSC Commodity Name: Electronic and communication measuring and testing instruments
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Power meters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
