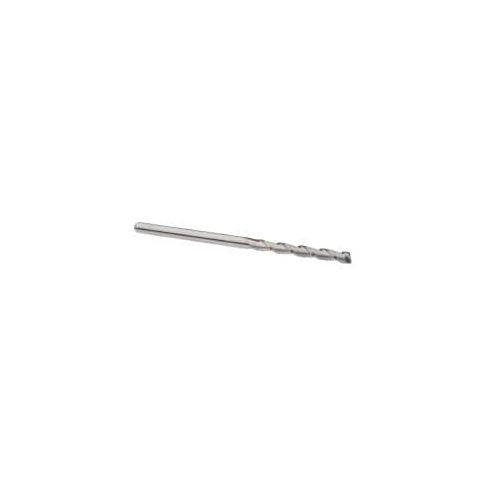

Square End Mill: 1/8'' Dia, 1'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 2 Flutes, Solid Carbide MPN:12176850

Discount: See in Cart
Free Shipping
In Stock
Brand: Accupro
Part #: 12176850
SKU
310-00037598
34.98 for Minimum Order Qty of 2
Regular Price $27.16 Special Price $17.49 Each
Square End Mill: 1/8'' Dia, 1'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 2 Flutes, Solid Carbide

The Square End Mill from Guhring is a premium cutting tool designed for precise end milling operations in demanding industries such as aerospace, medical, and automotive. Its solid carbide construction ensures durability and longevity while the 2-flute design enables efficient chip evacuation and extended tool life. With a length of cut of 1'' and a diameter of 1/8'', this end mill delivers rapid material removal for precision machining applications that require tight tolerances. The Square End Mill is an essential component in demanding machining applications where quality and performance are critical. Its precision and accuracy make it ideal for industries such as aerospace, medical, and automotive that require high-quality components with precise dimensions. Its key specifications include a 1/8'' diameter, 1/8'' shank diameter, 2-1/2'' OAL, and 2 flutes, making it an ideal choice for precise end milling operations.

Square End Mill: 1/8'' Dia, 1'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 40 degree Helix, Centercutting, RH Cut, RH Flute

Product Information

  • : 12176850
  • Centercutting: Yes
  • Chipbreaker: No
  • Cutting Direction: Right Hand
  • End Mill Material: Solid Carbide
  • End Type: Single
  • Extended Reach: No
  • Finish/Coating: Bright/Uncoated
  • Flute Direction: Right Hand
  • Flute Type: Spiral
  • Helix Angle: 40
  • Helix Style: Medium
  • Length of Cut (Decimal Inch): 1.0000
  • Length of Cut (Inch): 1
  • Length Type: Extra Long
  • Material Grade: Micrograin
  • Mill Diameter (Decimal Inch): 0.1250
  • Mill Diameter (Inch): 1/8
  • Mill Diameter Tolerance: +0.000/-0.002 in
  • Number of Flutes: 2
  • Overall Length (Inch): 2-1/2
  • Shank Diameter (Decimal Inch): 0.1250
  • Shank Diameter (Inch): 1/8
  • Shank Diameter Tolerance: -0.0001/-0.0004 in
  • Variable Helix: No
  • Variable Index: No

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: Yes
  • Country of Origin: US, United States
  • TAA Compliant: Yes
  • UNSPSC: 27112803
  • CA Restricted (Prop 65): No
  • Package Weight: 0.04
  • Prohibited States: AK,HI,PR
