InsulDsplConn Brown Run Tap PP PK100 MPN:567 BOX
SKU
226-CXG-4YT74

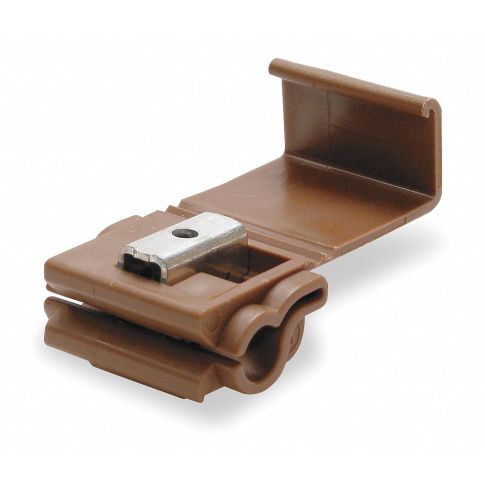

InsulDsplConn Brown Run Tap PP PK100
The InsulDsplConn Brown Run Tap PP PK100 from 3M is an innovative electrical connector designed to simplify wiring jobs with its insulation displacement technology. This connector provides a secure connection for wires ranging from 12 to 10 AWG, making it suitable for various applications like control circuit wiring, fixture wiring, and signal systems. With a convenient run-tap design, you can easily connect the wire end to a through wire in just one step. Its compact size makes it perfect for tight spaces, while the absence of fill material ensures easy inspection and testing. Make your electrical connections neater, safer, and more efficient with 3M's InsulDsplConn Brown Run Tap PP PK100.
Top product features:
- Insulation displacement technology
- Run-tap design
- Compact size
Top product applications:
- Wiring control circuits in electronic systems
- Installing fixtures and appliances in electrical wiring systems
- Connecting signal or PA systems for sound reinforcement or entertainment
These electrical run and tap connectors are designed to electrically connect a (tap) wire end to a through (run) wire and insulate the connection. Use with control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, and automotive/boat/RV wiring.
Technical Specifications
- Item Insulation Displacement Connector
- Wire Type Electrical
- Connector Type Run Tap
- Fill Material No Fill
- Wire Range (Run) 12 to 10 AWG
- Wire Range (Tap) 18 to 14 AWG
- Color Brown
- Max. Insulation Dia. 0.110 in Tap and 0.145 in Run
- Number of Ports 2
- Application Dry Environment
- Flame Retardant Yes
- Max. Voltage 600 V
- Insulation Material Polypropylene
- Max. Temp. 221 Degrees F
- Crimping Tool 2JLF8
- Standards CE Certified, CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 567BOX
- MPN: 567 BOX
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536904000
- GDS Category Name: Insulation Displacement Connectors
- GDS Family Name: Wire Connectors
- GDS Segment Name: Electrical
- UNSPSC: 39121432
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 32
- UNSPSC Commodity Name: Electrical terminals
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B001CGVBD6, B0042XTVCY, B00P1UE9M4
Product info last updated on January 24, 2024 2:55pm UTC Category: Wire Connectors
