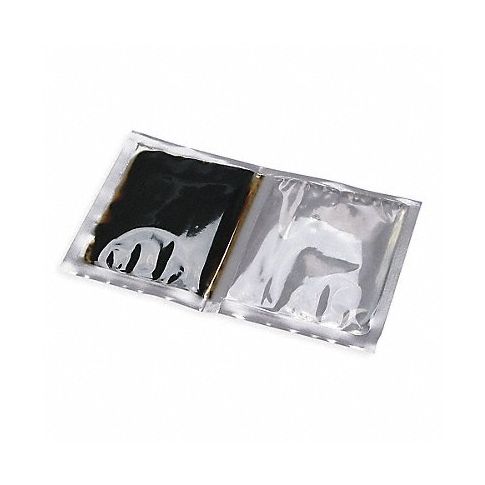

Resin Comp Spl Kit 10000 V 1/0 AWG
Resin Comp Spl Kit 10000 V 1/0 AWG is a high voltage insulating compound kit that offers excellent electrical insulation and dielectric strength. It provides thermal stability for use in wet or dry environments making it suitable for marine, automotive, military and telecommunication applications where reliable high voltage insulation is necessary. Typical customers include professional electricians, technicians and those who work in the telecom industry who need a durable resin compound kit for their projects.
Kit insulates a single conductor, unshielded cable splices through 5 kV, and multiple conductor cables through 1 kV from moisture and provide physical protection for electrical connections. Each kit makes one resin-encapsulated splice, which creates an extremely reliable seal.
Technical Specifications
- Item Resin Compound Splice Kit
- Wire Range 1/0 to 2/0 AWG
- Overall Length 8.0 in
- Voltage Rating 1000V
- Material Resin #4N
- Temp. Range Up to 194 Degrees F
- Color Black
- Max. Voltage 1,000 V
- Max. Temp. 194 Degrees F
- Standards RoHS 2011/65/EU Compliant
- Includes Electrical Tape, Mold Body, Pouring Spout
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 90B1N
- MPN: 90-B1N
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 5
Classification Details
- Harmonization Code: 3926909985
- GDS Category Name: Splice Kits
- GDS Family Name: Wire Connectors
- GDS Segment Name: Electrical
- UNSPSC: 39121718
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 18
- UNSPSC Commodity Name: Cable splicing kits
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
