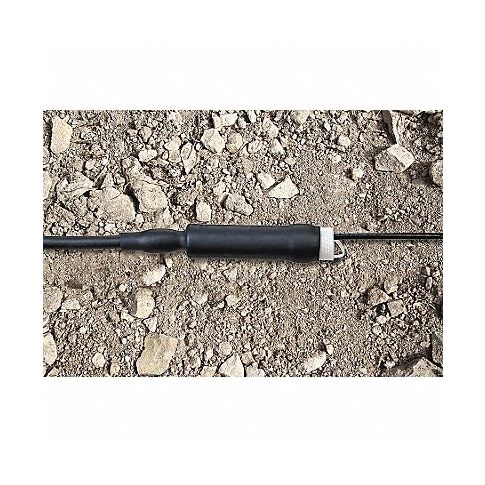

Cold Shrink Quick Splice 2.5 in Blk MPN:QSLV-M(8-2/0)

3-core cold shrink tubing has a core on each end as well as one in the center of the tube, which accommodates the variance in the cable and the connectors attached to it. The cores on either end are pulled to seal the tube, while the central core remains in place to act as support. This shrink tubing also has mastic on either end for a secure fit and to help seal out moisture.

Technical Specifications

• Item Cold Shrink Quick Splice
• Tubing Wall Type Medium Wall
• Material EPDM Rubber
• Flame Retardant No
• Adhesive Lined No
• Shrink Ratio Not Rated
• Use With Wire Size 8 AWG to 3/0 AWG
• I.D. Before Shrinking 0.75 in
• I.D. After Shrinking 0.2 in
• Wall Thickness After Shrinking Not Applicable
• Length 2.5 in
• Shrink Tubing Properties UV Light Resistant
• Color Black
• Temp. Range -40 Degrees to 266 Degrees F
• Package Style Individual Pieces
• Dielectric Strength 1,000 V
• Max. Temp. Rating 266 Degrees F
• Min. Temp. Rating -40 Degrees F
• Features 3-Core System, Water Resistant
• Standards ANSI Certified, RoHS 2011/65/EU

Manufacturer Details

• Manufacturer: 3M
• Condensed Mfg Number: QSLVM820
• MPN: QSLV-M(8-2/0)

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 4009110000
• GDS Category Name: Shrink Tubing
• GDS Family Name: Wire Management
• GDS Segment Name: Electrical
• UNSPSC: 39121721
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Electrical hardware and supplies
• UNSPSC Commodity ID: 21
• UNSPSC Commodity Name: Electrical insulators
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
