Shrink Tubing 500 ft Grn 0.125 in ID PK3 MPN:FP301-1/8-500'-GREEN-SPOOL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2JPP2

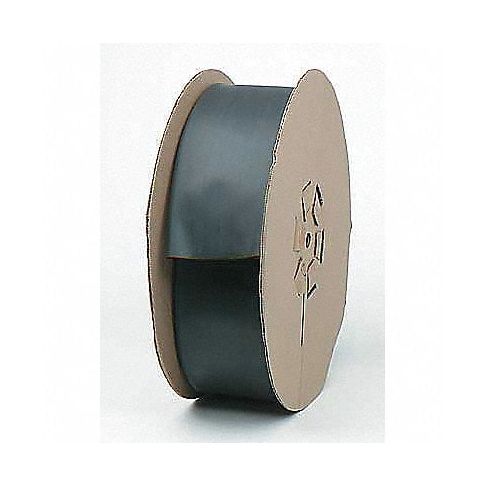

Shrink Tubing 500 ft Grn 0.125 in ID PK3
Introducing our reliable and versatile shrink tubing from 3M. This standard heat shrink tubing is perfect for general purpose industrial and commercial applications, providing insulation, strain relief, color-coding, or bundling for wire and cable connections. Made of thin wall polyolefin material with a flexible design to conform to irregular shapes, this product is perfect for a wide range of uses in the electrical industry. It shrinks with heat, ensuring an optimal fit around cables and connections. With its flame-retardant feature and other remarkable properties, our shrink tubing offers numerous benefits and is a must-have in your toolkit.
Top product features:
- High flexibility for easy installation around irregular shapes
- Flame retardant for added safety in electrical applications
- Shrinks with heat for a tight fit and secure insulation of cables and connections
Top product applications:
- Electrical wiring insulation and protection
- Cable harnessing for organized and secure wire management
- Wire termination and strain relief for reliable connections
Standard heat shrink tubing is used in general purpose industrial and commercial applications. It's flexible to conform to irregular shapes. It covers wire and cable and shrinks with heat to insulate, bundle, color-code, or provide strain relief.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Thin Wall
- Material Polyolefin
- Tubing Flexibility Flexible
- Flame Retardant Yes
- Adhesive Lined No
- Shrink Ratio 2:1
- Use With Wire Size 22 AWG to 16 AWG
- I.D. Before Shrinking 0.13 in
- I.D. After Shrinking 0.06 in
- Wall Thickness After Shrinking 0.02 in
- Length 500 ft
- Shrink Tubing Properties Acid and Alkali Resistant, Solvent Resistant
- Color Green
- Temp. Range -67 Degrees to 275 Degrees F
- Package Style Cut to Length
- Min. Shrink Temp. 212 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 275 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections
- Standards CSA Certified, RoHS 2011/65/EU, UL E39100
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: FP30118500GREENSPOOL
- MPN: FP301-1/8-500'-GREEN-SPOOL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0081JX1RG
Product info last updated on November 17, 2023 12:15pm UTC Category: Wire Management
