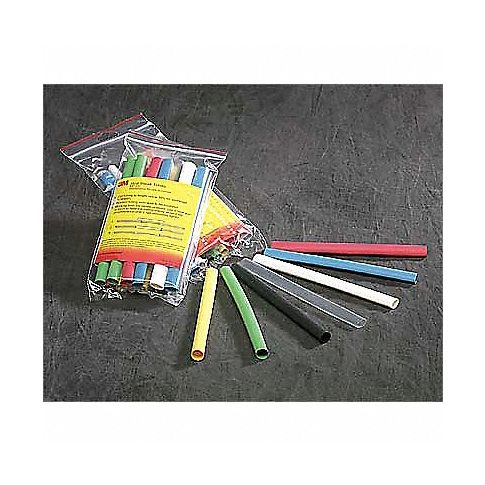

Shrink Tubing 4 ft Grn 0.063 in ID PK250 MPN:FP301-1/16-48"-GREEN-250 PCS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2JNL8
Shrink Tubing 4 ft Grn 0.063 in ID PK250
Shrink Tubing 4 ft Green 0.063 in ID PK250 is an essential component for creating custom connections between various wires or cables, providing electrical insulation and mechanical protection while allowing flexibility in movement. It comes with a 4 feet length, a sizeable outer diameter of 0.063 inches and an inner diameter of 0.028 inches, making it suitable for housing small-diameter wires, cables or tubing up to approximately 22 AWG gauge. The green color is UL-rated for flammability, ensuring safety in its use in various settings where combustibility concerns arise. Perfect for use in industrial, electronic and automotive industries for electrical wire harnessing or repair work.
Standard heat shrink tubing is used in general purpose industrial and commercial applications. It's flexible to conform to irregular shapes. It covers wire and cable and shrinks with heat to insulate, bundle, color-code, or provide strain relief.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Thin Wall
- Material Polyolefin
- Tubing Flexibility Flexible
- Flame Retardant Yes
- Adhesive Lined No
- Shrink Ratio 2:1
- Use With Wire Size 28 AWG to 26 AWG
- I.D. Before Shrinking 0.06 in
- I.D. After Shrinking 0.03 in
- Wall Thickness After Shrinking 0.02 in
- Length 4 ft
- Shrink Tubing Properties Acid and Alkali Resistant, Solvent Resistant
- Color Green
- Temp. Range -67 Degrees to 275 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 212 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 275 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections
- Standards CSA Certified, RoHS 2011/65/EU, UL E39100
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: FP30111648GREEN250PCS
- MPN: FP301-1/16-48"-GREEN-250 PCS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Wire Management
