Shrink Tubing 4 ft Gry 0.187 in ID PK250 MPN:MW-3/16-48-Gray

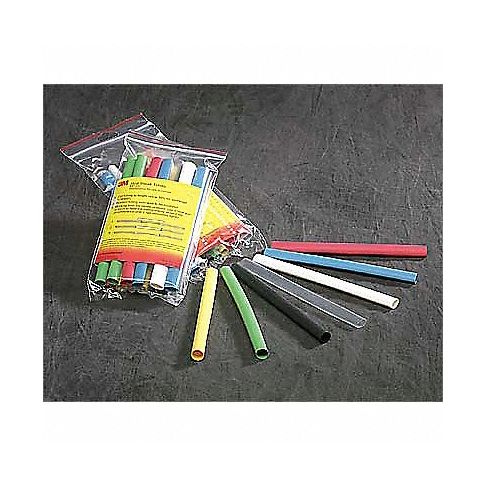

Shrink Tubing by 3M offers a durable yet versatile solution to wire protection, insulation, identification for various wire management needs. Made from a flame retardant, thermoplastic material providing superior flexibility, resilience, it is ideal for use in electrical, electronic, mechanical applications while featuring low capacitance characteristic preserving signal integrity or reducing noise within systems. With a convenient 4-foot length and 0.187-inch ID (inner diameter), this shrink tubing can be easily cut to the desired size using a pair of scissors offering customized fits, providing strain relief on wires while creating smooth transitions reducing wear or abrasion points thus minimizing failure risks while improving overall wire integrity.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Thin Wall
- Material Polyolefin with Adhesive
- Tubing Flexibility Semi Rigid
- Flame Retardant No
- Adhesive Lined Yes
- Shrink Ratio 2.5:1
- Use With Wire Size 20 AWG to 18 AWG
- I.D. Before Shrinking 0.19 in
- I.D. After Shrinking 0.06 in
- Wall Thickness After Shrinking 0.04 in
- Length 4 ft
- Shrink Tubing Properties Acid and Alkali Resistant
- Color Gray
- Temp. Range -67 Degrees to 230 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 275 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 230 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Multiple Wall is Co-Extruded and Cross-Linked To Offer A Meltable Inner Wall, Offers A Skintight Fit and Strain-Relief Sealing Of Electrical Connections, Wire Splices and Components
- Standards CSA Certified, RoHS 2011/65/EU, SAE SAE AS23053/4, Class 1, UL Listed
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: MW31648Gray
- MPN: MW-3/16-48-Gray
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
