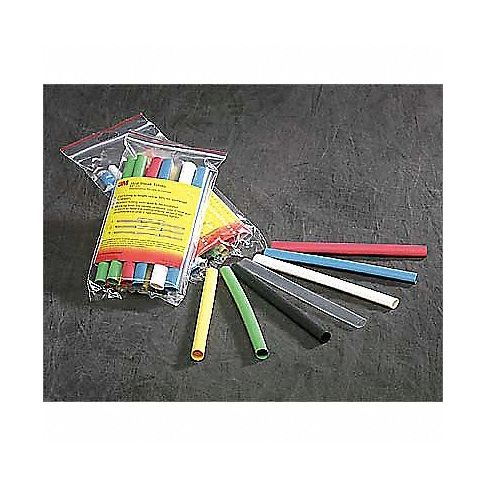

Shrink Tubing 4 ft Clr 0.25 in ID PK200
The Shrink Tubing is a versatile product designed for numerous applications such as electrical insulation, strain relief, and environmental protection of wire connections and terminals. This shrink tubing has a size of 4 feet and is colored clear to ensure maximum visibility, while its nominal inner diameter measures 0.25 inch and outer diameter stands at 0.375 inch, accommodating wires between #24 #12 AWG with ease. Made from durable polyolefin material, this tubing has excellent resistance to oil, chemicals, moisture, abrasion, flame, and UV radiation, ensuring lasting performance on even the harshest of environments.
Split-resistant and adhesive-lined heat shrink tubing has a heavy wall that can resist splitting and abrasion. It's typically used in electrical applications. This tubing covers plugs, connectors, irregular shapes, and wire and is heated to shrink the tubing and seal the adhesive.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Thin Wall
- Material Polyolefin with Adhesive
- Tubing Flexibility Flexible
- Flame Retardant Yes
- Adhesive Lined Yes
- Shrink Ratio 3:1
- Use With Wire Size 16 AWG to 12 AWG
- I.D. Before Shrinking 0.25 in
- I.D. After Shrinking 0.08 in
- Wall Thickness After Shrinking 0.04 in
- Length 4 ft
- Shrink Tubing Properties Abrasion Resistant, Acid and Alkali Resistant
- Color Clear
- Temp. Range -67 Degrees to 230 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 250 Degrees F
- Dielectric Strength 700 V
- Max. Temp. Rating 230 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Dual-Wall Construction, Moisture Seal Protection, Skintight Fit, Strain Relief Protection, Thermoplastic Adhesive Internal Layer
- Standards CSA File LR38227, UL E157227
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: EPS3001448Clear
- MPN: EPS-300-1/4-48-Clear
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 5
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00G4J8SXW, B0BK8JHSHX
Product info last updated on January 25, 2024 1:00pm UTC Category: Wire Management
