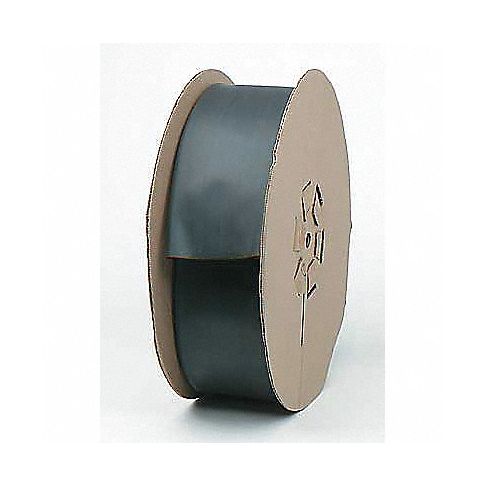

Shrink Tubing 500 ft Blu 0.125 in ID PK3 MPN:FP301-1/8-500'-BLUE-SPOOL
This high quality shrink tubing provides flexible, durable protection for wire splices, terminations and repairs; featuring a blu fluoropolymer material that resists oil, UV exposure, abrasion, chemicals, water (50m oil) yet allows easy removal without damaging the insulation. Available in 500ft coil packs or custom cut lengths to suit specific needs; with a smooth, non-reinforced PVC jacket and low smoke zero halogen (LSZH) characteristic it's suitable for most industries and applications, offering a clear view of wires while maintaining strain relief. Easily shrinks down tightly over wire sizes from 0.047 to 0.635in with gentle hand or heat application - perfect for use on solar panels, connectors or any place where protection and color-coding are important.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Thin Wall
- Material Polyolefin
- Tubing Flexibility Flexible
- Flame Retardant Yes
- Adhesive Lined No
- Shrink Ratio 2:1
- Use With Wire Size 22 AWG to 16 AWG
- I.D. Before Shrinking 0.13 in
- I.D. After Shrinking 0.06 in
- Wall Thickness After Shrinking 0.02 in
- Length 500 ft
- Shrink Tubing Properties Acid and Alkali Resistant, Solvent Resistant
- Color Blue
- Temp. Range -67 Degrees to 275 Degrees F
- Package Style Cut to Length
- Min. Shrink Temp. 212 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 275 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections
- Standards CSA Certified, RoHS 2011/65/EU, UL E39100
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: FP30118500BLUESPOOL
- MPN: FP301-1/8-500'-BLUE-SPOOL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 12:59pm UTC Category: Wire Management
