Shrink Tubing 25 ft Blk 1.1 in ID MPN:ITCSN-1100-25'-BLACK-REEL
Free Shipping
In Stock

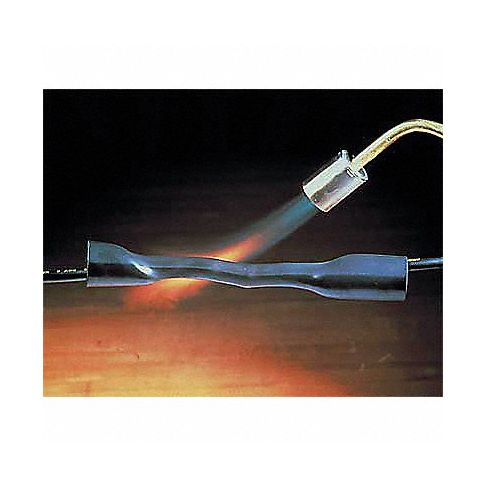

The 25ft length of black shrink tubing with a 1.1 inch inner diameter is ideal for various electrical insulation projects that require heat shrinking over wires, terminals, splices or any joints susceptible to abrasion, chemical damage or accidental touch while retaining the bundled wire segments together for easy identification and maintenance. Manufactured from high-quality polyolefin material ensures excellent insulating properties resistant to temperature fluctuations as low as -75C (-90F) while exhibiting resistance to abrasion, chemicals and moisture; it is suitable for direct sunlight exposure too. With an outer diameter of 1.38in when expanded, it simplifies installation onto wires before shrinking using heat tool eliminating need for tapes, wraps or sleeves, hence preferred by electricians, contractors or hobbyists where quick and durable wire bundles are needed on the field without adding unnecessary bulk.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Heavy Wall
- Material Cross-Linked Polyolefin
- Tubing Flexibility Rigid
- Flame Retardant No
- Adhesive Lined No
- Shrink Ratio 3:1
- Use With Wire Size 2 AWG to 4/0 AWG
- I.D. Before Shrinking 1.1 in
- I.D. After Shrinking 0.37 in
- Wall Thickness After Shrinking 0.12 in
- Length 25 ft
- Shrink Tubing Properties Abrasion Resistant, Acid and Alkali Resistant, UV Light Resistant
- Color Black
- Temp. Range -67 Degrees to 230 Degrees F
- Package Style Cut to Length
- Min. Shrink Temp. 250 Degrees F
- Dielectric Strength 500 V
- Max. Temp. Rating 230 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Suitable for Insulating Secondary Splices
- Standards CSA File LR38227, RoHS 2011/65/EU, UL 486D
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: ITCSN110025BLACKREEL
- MPN: ITCSN-1100-25'-BLACK-REEL
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909985
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 12:59pm UTC Category: Wire Management
