Elec Tape 15 ft Lx2 in W 2.7 mil Gold MPN:5419
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-15C439

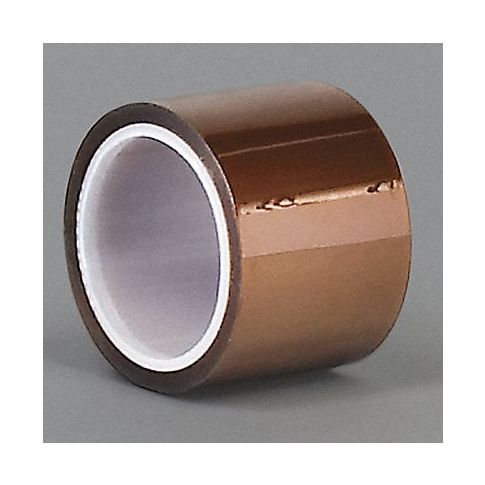

Elec Tape 15 ft Lx2 in W 2.7 mil Gold
Introducing Elec Tape 15 ft Lx2 in W 2.7 mil Gold from 3M, a low-static film tape ideal for fabrication and printed circuit board processes. With a versatile silicone adhesive that offers high-temperature performance, this tape is perfect for parts that require elevated temperature curing or applications that need durable bonding. Its single-sided adhesive makes it easy to apply and remove with precision. The polyimide backing material provides excellent chemical resistance, making Elec Tape ideal for a wide range of industrial uses. With its gold color, this tape is perfect for marking or indicating locations on PCBs during the soldering process. Improve your bonding projects and elevate your performance with Elec Tape from 3M.
Top product features:
- High-temperature performance for elevated temperature curing applications
- Single-sided adhesive for easy application and removal
- Gold color for marking or indicating locations on PCBs during soldering
Top product applications:
- Elevated temperature curing applications in fabrication processes
- Printed circuit board masking during wave solder or solder dip processes
- Marking or indicating locations on PCBs during the soldering process
Use this low-static film tape as a release surface in the fabrication of parts cured at elevated temperatures, or as a mask for printed circuit boards during wave solder or solder dip processes.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 2 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 20 oz/in
- Tape Shape Continuous Roll
- Series 5419
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5419
- MPN: 5419
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
