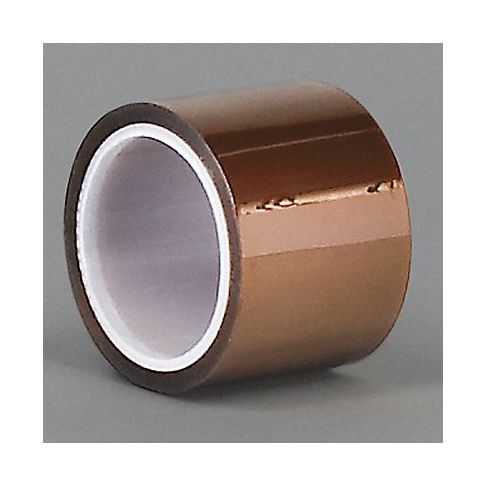

Elec Tape 15 ft Lx1 in W 2.7 mil Gold MPN:5419
Free Shipping
In Stock
Introducing Elec Tape 15 ft Lx1 in W 2.7 mil Gold from 3M - an incredible film tape designed specifically for high-temperature release applications and PCB manufacturing. With a single coat of adhesive, polyimide backing material, and silicone adhesive, this tape delivers exceptional performance in the fabrication of components that are cured at elevated temperatures up to 500F (260C). Additionally, it can be used as a mask during wave soldering or solder dipping processes. The durable and low-static tape provides consistent and reliable results in various industries such as electronics, automotive, and aerospace. Boost your manufacturing process with Elec Tape 15 ft Lx1 in W 2.7 mil Gold from 3M and enjoy the benefits of superior performance and quality.
Top product features:
- Low-static tape for cleaner pick and place process.
- Single coat adhesive saves on material costs and reduces complexity in applications.
- Polyimide backing provides excellent temperature resistance and durability.
Top product applications:
- High temperature release applications in PCB and electronic component manufacturing
- Protective masking during soldering or dipping processes for printed circuit boards
- A thermal release liner for delicate components in assembly and die cutting processes.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 20 oz/in
- Tape Shape Continuous Roll
- Series 5419
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5419
- MPN: 5419
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
