Elec Tape 15 ft Lx1/4 in W 2.7 mil Gold MPN:5419
SKU
226-CXG-15C437

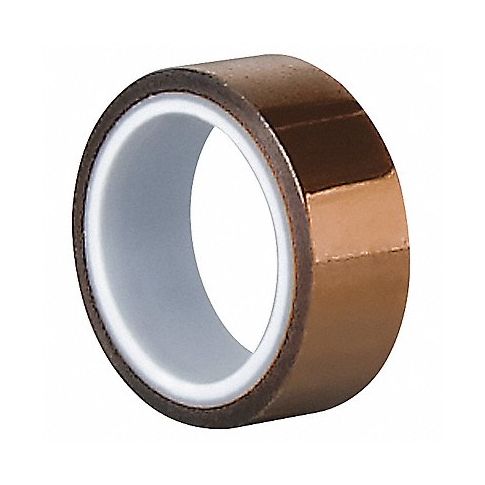

Elec Tape 15 ft Lx1/4 in W 2.7 mil Gold
Introducing Elec Tape 15 ft Lx1/4 in W 2.7 mil Gold from 3M - the ultimate film tape designed for a variety of industrial applications. This low-static polyimide film tape with a thin, high-quality silicone adhesive coating offers exceptional performance in demanding environments. Use it as a release surface during the fabrication of parts cured at elevated temperatures or as a mask for printed circuit boards during wave solder or solder dip processes. With its superior performance and versatility, Elec Tape delivers excellent value and durability for any application that requires a reliable bonding solution. Upgrade your industrial processes with Elec Tape - the tape that delivers unbeatable performance in every use.
Top product features:
- Low-static film tape for use in high-temperature applications
- Silicone adhesive coating for durability and versatility
- Masking capabilities for printed circuit board processes
Top product applications:
- Fabrication of parts cured at high temperatures
- Masking during printed circuit board processes
- Bonding in demanding industrial environments
Use this low-static film tape as a release surface in the fabrication of parts cured at elevated temperatures, or as a mask for printed circuit boards during wave solder or solder dip processes.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1/4 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 20 oz/in
- Tape Shape Continuous Roll
- Series 5419
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5419
- MPN: 5419
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
