Elec Tape 15 ft Lx6 in W 2.7 mil Amber MPN:5413
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-15C435

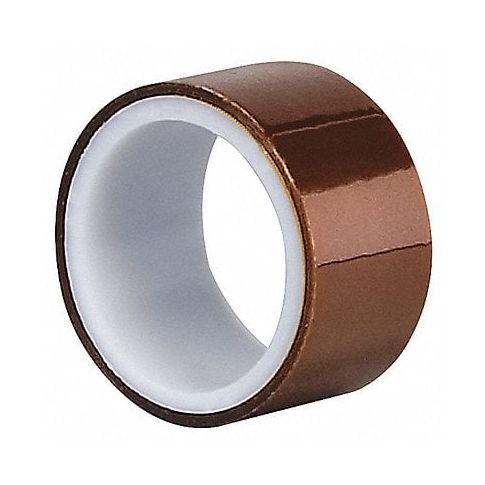

Elec Tape 15 ft Lx6 in W 2.7 mil Amber
Introducing Elec Tape - the perfect solution for high-temperature applications! Our 15 ft Lx6 in W x 2.7 mil Amber tape offers exceptional insulation and is resistant to solvents, making it ideal for wrapping coils, transformers, capacitors, wire harnesses, and more. With a wide range of applications in the electrical, automotive, aerospace, and industrial industries, Elec Tape's high-temperature rating ensures safety and optimal performance. Use it as a cover layer for flexible printed circuits or anywhere you need reliable insulation that can withstand tough conditions. Don't settle for inferior products - choose Elec Tape for unparalleled quality and versatility.
Top product features:
- Thin and versatile design for high-temperature applications
- Solvent-resistant adhesive for durable performance
- Wide range of sizes and thicknesses for customizable uses
Top product applications:
- Wrapping coils and transformers in electrical systems
- Insulating wire harnesses and capacitors for thermal protection
- Covering flexible printed circuits to protect them from damage
This thin, insulating, solvent-resistant tape can be used for high-temperature applications, including wrapping coils, transformers, capacitors, and wire harnesses. It can also be used as a cover layer for many types of flexible, printed circuits.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 6 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 22 oz/in
- Tape Shape Continuous Roll
- Series 5413
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5413
- MPN: 5413
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
