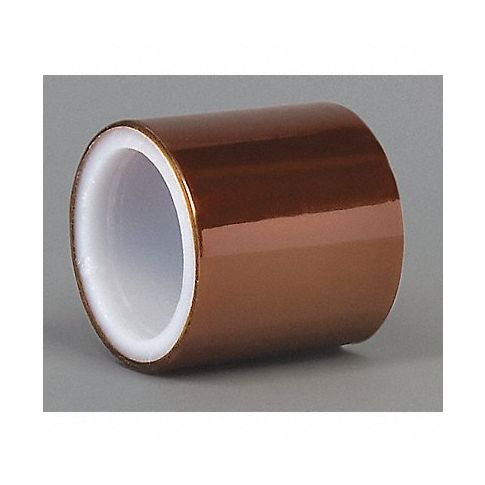

Elec Tape 15 ft Lx4 in W 2.7 mil Amber MPN:5413
SKU
226-CXG-15C434
Elec Tape 15 ft Lx4 in W 2.7 mil Amber
Introducing Elec Tape from 3M - the perfect solution for high-temperature applications. This thin, insulating, and solvent-resistant tape is designed to withstand extreme temperatures while offering excellent adhesion and durability. Ideal for wrapping coils, transformers, capacitors, and wire harnesses, Elec Tape ensures a secure and reliable connection in even the most demanding environments. Its versatile design also makes it ideal for use as a cover layer on flexible printed circuits, providing outstanding protection and performance. With its wide range of applications and benefits, Elec Tape is an indispensable tool for anyone working in electrical and electronics industries.
Top product features:
- Thin and flexible design for easy application in tight spaces
- Insulating material for safe and reliable use around high voltage components
- Wide temperature resistance for performance in harsh environments
Top product applications:
- Wrapping and insulating coils and transformers in high-temperature environments
- Repairing and sealing wire connections in electronic and electrical equipment
- Insulation and protection of flexible printed circuits from mechanical stress and damage
This thin, insulating, solvent-resistant tape can be used for high-temperature applications, including wrapping coils, transformers, capacitors, and wire harnesses. It can also be used as a cover layer for many types of flexible, printed circuits.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 4 in
- Tape Length 5 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 22 oz/in
- Tape Shape Continuous Roll
- Series 5413
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5413
- MPN: 5413
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
