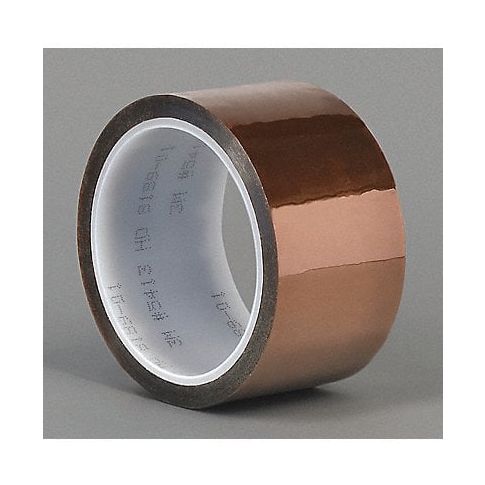

Elec Tape 108 ft Lx1 in W 2.7 mil Amber MPN:5413
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-15C428
Elec Tape 108 ft Lx1 in W 2.7 mil Amber
Elec Tape from 3M is the perfect solution for electrical insulation and protection in high-temperature applications. Its thin, solvent-resistant design can be used to wrap coils, transformers, capacitors, and wire harnesses while providing a strong bond that won't degrade over time. With its flexible, printed circuit cover layer capabilities, Elec Tape is ideal for numerous applications across various industries. The versatile 1 width and 2.7 mil thickness make it easy to use and cut to the desired length, ensuring a perfect fit every time. Don't risk safety or performance with inferior tapes - choose Elec Tape from 3M for reliable electrical insulation and protection.
Top product features:
- High-temperature resistance: can be used in applications with temperatures up to 200C
- Solvent-resistant adhesive: provides strong bonding that won't degrade over time
- Flexible and easy-to-use design: perfect for various electrical insulation and protection needs
Top product applications:
- Insulating and protecting electrical wires and components in high-temperature environments (e.g. motors, transformers)
- Wrapping coils to provide insulation and reduce the risk of electrical short circuits
- Covering flexible printed circuits for added protection during installation or transportation
This thin, insulating, solvent-resistant tape can be used for high-temperature applications, including wrapping coils, transformers, capacitors, and wire harnesses. It can also be used as a cover layer for many types of flexible, printed circuits.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1 in
- Tape Length 36 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 22 oz/in
- Tape Shape Continuous Roll
- Series 5413
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5413
- MPN: 5413
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
