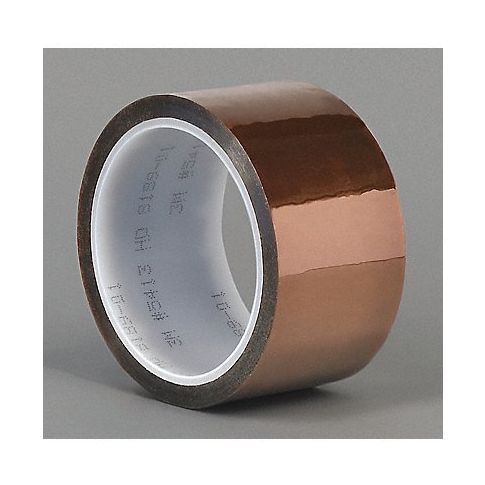

Elec Tape 108 ft Lx1/4 W 2.7 mil Amber MPN:5413
SKU
226-CXG-15C427
Elec Tape 108 ft Lx1/4 W 2.7 mil Amber
Elec Tape from 3M is an essential tool for electrical installations and repairs. Made from a thin, insulating, solvent-resistant film with versatile adhesive properties, it's perfect for high-temperature applications such as wrapping coils, transformers, capacitors, and wire harnesses. Additionally, its silicone adhesive ensures long-lasting bonds that stand up to tough conditions. The single adhesive side simplifies the application process while preventing sticky residue on surfaces after removal. Suitable for both professional use in industries like manufacturing and construction, as well as DIY electrical projects at home, Elec Tape offers convenience and reliability across a wide range of applications.
Top product features:
- Thin, insulating, solvent-resistant film
- Versatile adhesive properties
- Single adhesive side for easy application and removal
Top product applications:
- Wrapping coils and transformers
- Covering flexible, printed circuits
- Repairing electrical wires
This thin, insulating, solvent-resistant tape can be used for high-temperature applications, including wrapping coils, transformers, capacitors, and wire harnesses. It can also be used as a cover layer for many types of flexible, printed circuits.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1/4 in
- Tape Length 36 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 22 oz/in
- Tape Shape Continuous Roll
- Series 5413
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5413
- MPN: 5413
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
