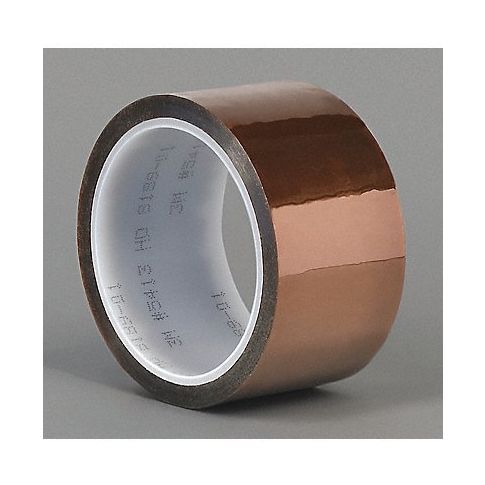

Elec Tape 108 ft Lx1/2 W 2.7 mil Amber MPN:5413
Introducing Elec Tape by 3M - the ultimate high-temperature electrical tape designed to meet the insulation and shielding needs of demanding industrial environments. With its thin, solvent-resistant construction, this tape is perfect for wrapping coils, transformers, capacitors, and wire harnesses. But that's not all - Elec Tape also makes an excellent cover layer for flexible, printed circuits, providing safe and reliable connections. Its polyimide backing material offers exceptional resistance to chemicals, moisture, and UV exposure, ensuring long-lasting performance in harsh conditions. So if you're looking for a versatile electrical tape that can handle high temperatures and deliver unmatched performance, Elec Tape is the solution you've been searching for.
Top product features:
- High-temperature resistance (up to 200C) allows use in extreme environments and prolonged exposure to heat without degradation
- Solvent-resistant adhesive ensures long-lasting bonding and protection against chemicals, solvents, and other aggressive substances
- Versatile application suitable for a wide range of electrical applications including wrapping coils, transformers, capacitors, wire harnesses, and as cover layer for printed circuits
Top product applications:
- Electrical insulation and protection used to protect electrical connections from moisture, chemicals, and abrasion
- High-temperature wrapped coils, transformers, and capacitors allows electrical components to function in high heat conditions (up to 200C)
- Cover layer for printed circuits provides safe and reliable connections on flexible circuits
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Silicone
- Tape Thickness 2.7 mil
- Tape Width 1/2 in
- Tape Length 36 yd
- Min. Tape Performance Temp. -100 Degrees F
- Max. Tape Performance Temp. 500 Degrees F
- Tape Tensile Strength 33 lb-in
- Tape Adhesive Strength 22 oz/in
- Tape Shape Continuous Roll
- Series 5413
- Standards RoHS Complaint/REACH Regulations 2002/95/EC and 2005/618/EC, ASTM D3330, D3759, D3652, D149, E-595
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 5413
- MPN: 5413
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
