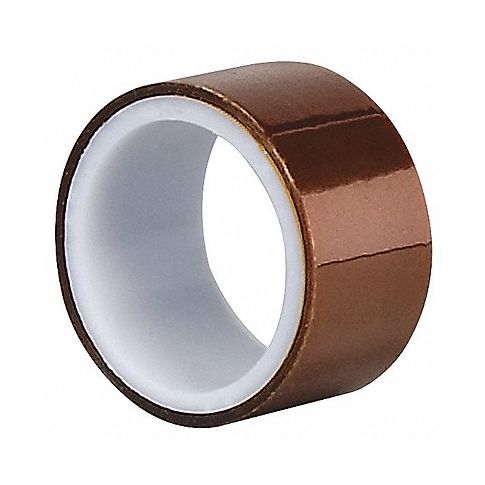

Elec Tape 15 ft Lx1/4 in W 3 mil Amber MPN:1205
SKU
226-CXG-15C022
Elec Tape 15 ft Lx1/4 in W 3 mil Amber
Elec Tape from 3M is an exceptional insulation tape that meets the needs of various industries where high-temperature applications are a norm. With its ability to wrap coils, transformers, capacitors, and wire harnesses without getting damaged, this versatile tape eliminates the need for additional supportive products. Furthermore, it can be used as a cover layer for flexible printed circuits, making it an excellent choice for electronic projects. Its 3 mil thickness, acrylic adhesive, and polyimide backing provide strength, durability, and solvent resistance. Elec Tape is an affordable solution that delivers outstanding performance in electrical insulation applications.
Top product features:
- High temperature resistance: ensures that it remains durable and functional even in high heat applications.
- Strong adhesive: allows it to hold securely and firmly without slipping or tearing.
- Wide range of applications: it can be used on various types of objects and materials for electrical insulation purposes.
Top product applications:
- Wrapping and insulating coils in high-temperature applications.
- Insulating transformers, capacitors, and wire harnesses for electrical safety.
- Covering flexible printed circuits for improved durability and protection.
This thin, insulating, solvent-resistant tape can be used for high-temperature applications, including wrapping coils, transformers, capacitors, and wire harnesses. It can also be used as a cover layer for many types of flexible, printed circuits.
Technical Specifications
- Item Film Tape
- Number of Adhesive Sides 1
- Tape Backing Material Polyimide
- Tape Adhesive Acrylic
- Tape Thickness 3.0 mil
- Tape Width 1/4 in
- Tape Length 5 yd
- Min. Tape Performance Temp. 0 Degrees F
- Max. Tape Performance Temp. 310 Degrees F
- Tape Tensile Strength 30 lb-in
- Tape Adhesive Strength 35 oz/in
- Tape Shape Continuous Roll
- Series 1205
- Standards ASTM D1000, UL 510, UL Recognized
Manufacturer Details
- Manufacturer: 3M
- Condensed Mfg Number: 1205
- MPN: 1205
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3919102055
- GDS Category Name: Insulating Electrical Tape
- GDS Family Name: Tapes
- GDS Segment Name: Adhesives Sealants and Tape
- UNSPSC: 31201522
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Tape
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Adhesive transfer tape
- UNSPSC Family ID: 20
- UNSPSC Family Name: Adhesives and sealants
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
