WNMG332ELUW T2000Z Cermet Turning Insert MPN:19DXBRX

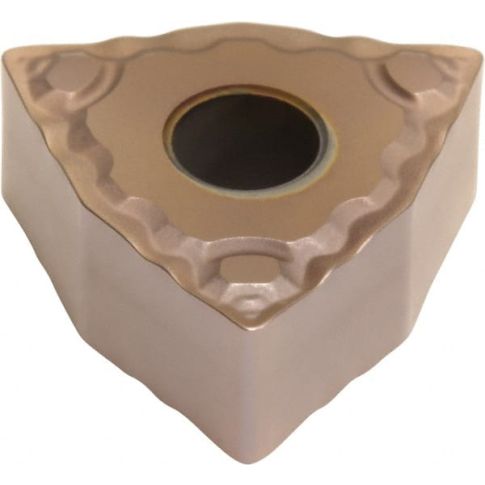

WNMG332ELUW T2000Z Cermet Turning Insert
WNMG332ELUW T2000Z Cermet Turning Insert TiN/AlN Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 80degree Trigon
Product Information
- : 19DXBRX
- Ansi Code: WNMG332ELUW
- Chip Breaker: ELU
- Clearance Code: N
- Coating Process: PVD
- Coating/Finish: TiN; AlN
- Corner Radius (Decimal Inch): 0.0313
- Corner Radius (Inch): 1/32
- Hole Diameter (Decimal Inch): 0.1500
- Included Angle: 80.0
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Neutral
- Insert Holding Method: Clamp; Pin
- Insert Length (Decimal Inch): 0.2529
- Insert Material: Cermet
- Insert Shape: Trigon
- Insert Shape Code: W
- Insert Size Code: 332
- Insert Style: WNMG
- Insert Thickness (Decimal Inch): 0.1875
- Insert Thickness (Inch): 3/16
- Iso Code: WNMG060408N-LUW
- Manufacturer Grade: T2000Z
- Primary Workpiece Material: Steel
- Primary Workpiece Material Code: P
- Proprietary Coating Designation: ZX
- Rake: Positive
- Rake Angle: 10
- Relief Angle: 0
- Series: WN
- Standards: ANSI; ISO 13399
- Tolerance Code: M
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: JP, Japan
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 3.50
- Package Width: 1.50
- Package Height: 0.44
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Turning and Profiling Inserts
