CPMA2.51.51 AC420K Carbide Turning Insert MPN:191RBQE

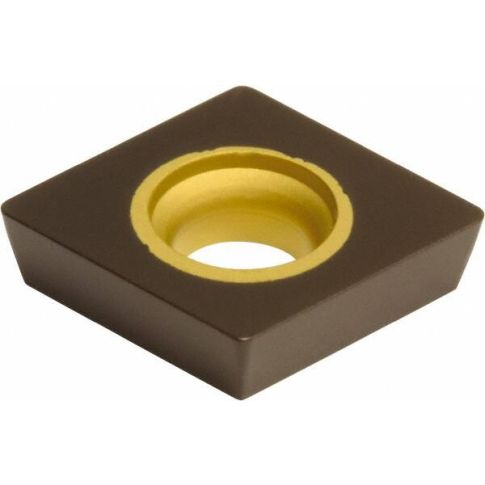

CPMA2.51.51 AC420K Carbide Turning Insert
CPMA2.51.51 AC420K Carbide Turning Insert Proprietary Finish, 5/16" Inscribed Circle, 1/64" Corner Radius, 80degree Diamond
Product Information
- : 191RBQE
- Ansi Code: CPMA2.51.51
- Chip Breaker: A
- Clearance Code: P
- Coating Process: CVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0156
- Corner Radius (Inch): 1/64
- Hole Diameter (Decimal Inch): 0.1340
- Included Angle: 80.0
- Inscribed Circle (Decimal Inch): 0.3125
- Inscribed Circle (Inch): 5/16
- Insert Holding Method: Screw
- Insert Length (Decimal Inch): 0.3150
- Insert Material: Solid Carbide
- Insert Shape: Diamond
- Insert Shape Code: C
- Insert Size Code: 51.51
- Insert Style: CPMA
- Insert Thickness (Inch): 3/32
- Iso Code: CPMW080204
- Manufacturer Grade: AC420K
- Primary Workpiece Material: Cast Iron
- Primary Workpiece Material Code: K
- Proprietary Coating Designation: FF
- Rake: Neutral
- Rake Angle: 0
- Relief Angle: 11
- Series: CP
- Standards: ANSI; ISO 13399
- Tolerance Code: M
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: JP, Japan
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 3.50
- Package Width: 1.50
- Package Height: 0.44
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 3:38am UTC
Category: Turning and Profiling Inserts
