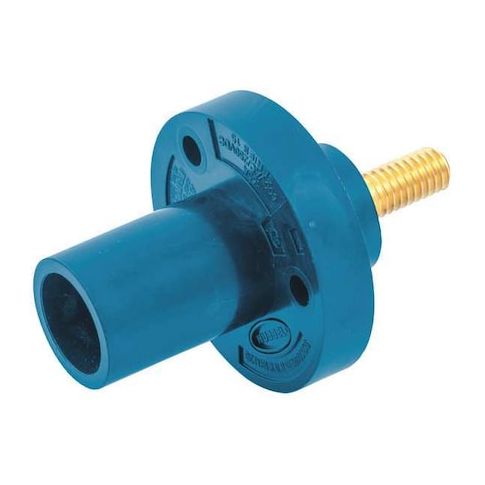

Receptacle, Blue, Male, Threaded Stud, 150 A MPN:HBL15MRSBL
Free Shipping
In Stock
The HUBBELL Receptacle, Stud, Blue, 150AC/DC, Male is a versatile and reliable solution for temporary electrical power distribution in industrial settings. Designed for use in harsh environments, this single-pole device features a threaded stud termination and accommodates wire sizes from #8 to #2 AWG, supporting up to 150 amps at 600V AC or 250V DC. Its thermoplastic elastomer housing ensures durability and meets NEMA Types 12, 3R, and 4X requirements. Ideal for construction sites, outdoor events, or emergency power distribution, this receptacle provides a safe and efficient means of delivering electrical power where it's needed most.
Top product features:
- Accommodates wire sizes from #8 to #2 AWG
- Supports up to 150 amps at voltages of 600V AC or 250V DC
- Meets NEMA Types 12, 3R, and 4X requirements
Top product applications:
- Temporary Electrical Power Distribution in Industrial Settings
- Construction Site Power Distribution
- Emergency Power Distribution in Remote Areas
The HUBBELL Receptacle, Stud, Blue, 150AC/DC, Male is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male receptacle features a threaded stud termination and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and supports up to 150 amps at voltages of 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer for use in indoor dry locations unless additional protection is provided.
Key Features of the HUBBELL Receptacle, Stud, Blue, 150AC/DC, Male:
- Amperage/Voltage Rating: Rated for up to 150 A at 600V AC or 250V DC
- Connection Type: Threaded stud terminal connection allows assembly without the need for special tools
- Wire Accommodation: Accepts #8 to #2 AWG wire sizes
- complies with UL1691 standards
- Material Construction: Brass contacts with thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: Listed under ANSI/NFPA 70 (NEC), cUL Listed, UL Enclosure Types
- Pole Configuration: Single pole design
- male style with taper nose end type
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.17
