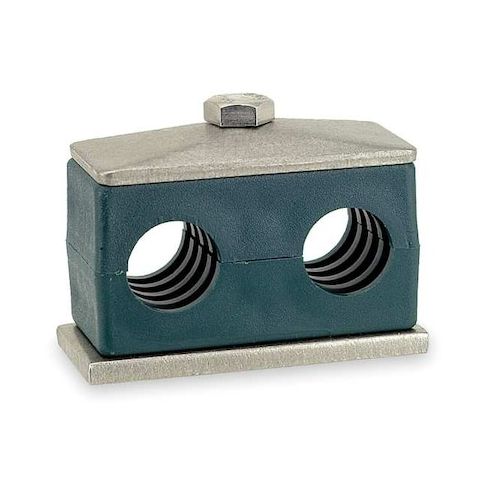

Vibration Dampening Beta Clamp, Twin, 1-1/4 in Tube, Steel Clamp, Poly Cushion, Weld-On MPN:T5020S
Vibration Dampening Beta Clamp, Twin, 1-1/4 in Tube, Steel Clamp, Poly Cushion, Weld-On
This vibration-dampening beta clamp is a twin assembly designed for use with 1-1/4 in copper tube, featuring a steel clamp with a polypropylene cushion for maximum vibration reduction. The clamp is suitable for applications where high loads and temperatures are present, with a load capacity of 2,500 lb and a maximum operating temperature of 194°F. Its weld-on design makes it ideal for use in industrial settings, such as HVAC, plumbing, and piping systems. The clamp's durable construction and vibration-dampening properties ensure reliable performance and extended equipment lifespan.
Top product features:
- Vibration dampening provides reduced shock and stress on connected components.
- The polypropylene cushion material helps absorb and reduce vibration.
- The weld-on design allows for secure and permanent attachment to surfaces.
Top product applications:
- Copper tubing for hydronic heating systems
- Industrial process piping for chemical plants
- Steam condensate return lines in power plants
Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Copper Tube Size 1 1/5 in, For Maximum Outside Diameter 1 1/4 in, For Minimum Outside Diameter 1 1/4 in, For Number of Lines 2, For Pipe Size Not Applicable, Load Capacity 2,500 lb, Maximum Operating Temperature 194 Degrees F, Mount Type Weld-On
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.00
- Package Height: 1.10
- Package Weight: 0.63
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on March 10, 2026 12:32am UTC
Category: Pipes, Valves and Fittings
