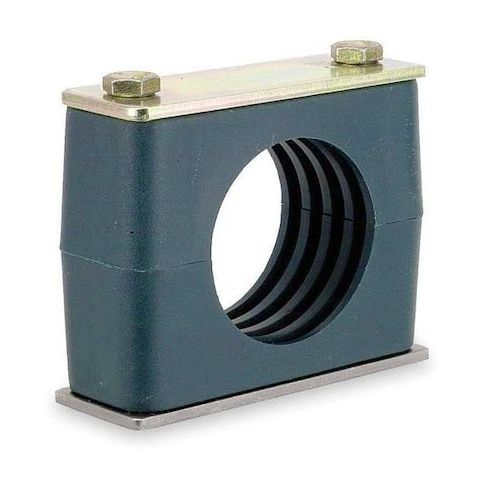

Vibration Dampening Beta Clamp, 1in Pipe, 1 Line, 1in OD, 2-3/64in W, Ribbed Bore, Steel/Polyproplene MPN:S3016S
Vibration Dampening Beta Clamp, 1in Pipe, 1 Line, 1in OD, 2-3/64in W, Ribbed Bore, Steel/Polyproplene
The Vibration Dampening Beta Clamp is a high-performance solution for securing 1-inch copper tubes in various applications. Its ribbed bore design and steel/polypropylene construction ensure a secure and vibration-dampening fit, reducing the risk of tube damage and system failure. With a load capacity of 2,500 pounds and a maximum operating temperature of 194 degrees Fahrenheit, this clamp is ideal for use in industrial, commercial, and residential settings, including HVAC, plumbing, and refrigeration systems. Its compact size and weld-on mount type make it easy to install and integrate into existing systems.
Top product features:
- Ribbed bore design for improved vibration dampening
- Vibration-dampening beta clamp assembly for reduced pipe movement
- Polypropylene cushion material for shock absorption and noise reduction
Top product applications:
- Pipe Fittings
- Industrial Automation
- HVAC Systems
Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Copper Tube Size 1 in, For Maximum Outside Diameter 1 in, For Minimum Outside Diameter 1 in, For Number of Lines 1, For Pipe Size Not Applicable, Load Capacity 2,500 lb, Maximum Operating Temperature 194 Degrees F, Mount Type Weld-On
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.24
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on March 24, 2026 9:49am UTC
Category: Pipes, Valves and Fittings
