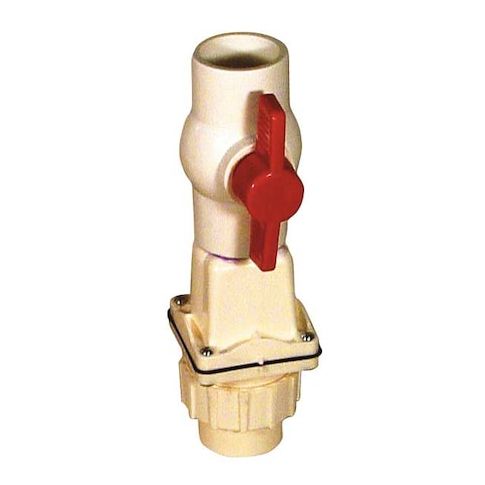

Check Valve with Ball Valve and Union, Inline Swing, 1 1/2 in, PVC, Compression x Solvent Weld MPN:30-0100
Free Shipping
In Stock
This 1-1/2in Socket PVC Swing Check Valve from Zoeller is a reliable solution for various applications, including pumps and industrial systems. Its inline swing design allows for efficient flow control, while the PVC body and neoprene seal ensure durability and resistance to corrosion. With a maximum temperature rating of 130°F and a maximum water pressure of 25 psi, this valve is suitable for a range of environments. Its compact design and ease of installation make it an ideal choice for horizontal or vertical mounting, providing a cost-effective and efficient solution for applications where flow control is necessary.
Top product features:
- Swing design allows for easy opening and closing of the valve
- PVC body material provides chemical resistance and durability
- Neoprene seal material ensures a tight and leak-free seal
Top product applications:
- Pumps
- Pumps
- Pumps
The ZOELLER 30-0100 is a PVC check valve with ball valve and union for compatible pump applications. It is a check valve for one-way flow control in compatible inline liquid handling systems. This valve features an inline swing design, full-flow operation, and female socket connections sized for 1-1/2 in pipe. It can be mounted horizontally or vertically.
Key Features:
- Valve type: Check valve with ball valve and union.
- Body material: PVC.
- Check mechanism: Swing.
- Body design: Inline swing with inline body style.
- Nominal size: 1-1/2 in.
- Pipe or tube size: 1-1/2 in.
- Connections: Female socket x female socket
- verify connection requirements before installation.
- Cracking pressure: 1 psi.
- Full-flow operation.
- Seal material: Neoprene
- seal: FPM
- seat material: PVC.
- Maximum operating pressure: 25 psi.
- Maximum water pressure: 25 psi at 130 degrees F.
- Temperature range: 75 to 130 degrees F.
- Mounting orientation: Horizontal or vertical.
- Overall dimensions: 11 in L x 12 in H x 8 in W.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 13.00
- Package Height: 3.30
- Package Weight: 1.90
