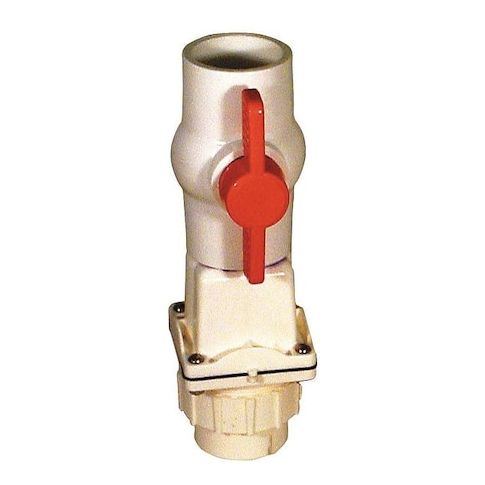

Check Valve with Ball Valve and Union, Inline Swing, 2 in Pipe Size, PVC, Compression x Socket MPN:30-0101
Free Shipping
In Stock
The 2in Socket PVC Swing Check Valve from Zoeller is a reliable and efficient solution for various applications. Designed for inline use, this valve allows for full flow and features a neoprene seal for long-lasting performance. Suitable for use in pumps and other systems, it can withstand high water pressures up to 25 psi at 130°F. Its compact design measures 11 1/2 inches in length and 9 1/2 inches in width, making it ideal for installation in tight spaces. With a maximum temperature rating of 130°F, this valve is perfect for use in a variety of commercial and residential settings.
Top product features:
- 2in Socket PVC Swing Check Valve:
- Has a single flow design for efficient fluid flow
- Is an inline swing check valve with a neoprene seal for reliable shut-off
Top product applications:
- Pumps
- Pumps
- Pumps
ZOELLER 30-0101 is a 2 in. inline check valve with ball valve and union for pump applications. It features a single-flow inline swing design that supports one-way flow and is intended to reduce reverse flow in connected piping. The valve has a PVC body, PVC seat, and PVC check mechanism with a neoprene seal, and it is rated for horizontal or vertical mounting.
Key Features:
- Valve type: Check valve with ball valve and union
- Nominal size: 2 in.
- Body style: Inline
- Check mechanism: Swing
- Flow design: Single-flow
- Full flow: Yes
- Body material: PVC
- Check mechanism material: PVC
- Seat material: PVC
- Seal material: Neoprene
- Connection type: Compression x Solvent Weld
- Side 1 connection: 2 in. female socket
- Side 2 connection: Female socket
- Cracking pressure: 1 psi
- Maximum operating pressure: 25 psi
- Maximum water pressure: 25 psi at 130 degrees F
- Maximum temperature: 130 degrees F
- Mounting orientation: Horizontal or vertical
- Overall dimensions: 11.5 in. L x 13 in. H x 9.5 in. W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 10.00
- Package Height: 3.80
- Package Weight: 2.85
