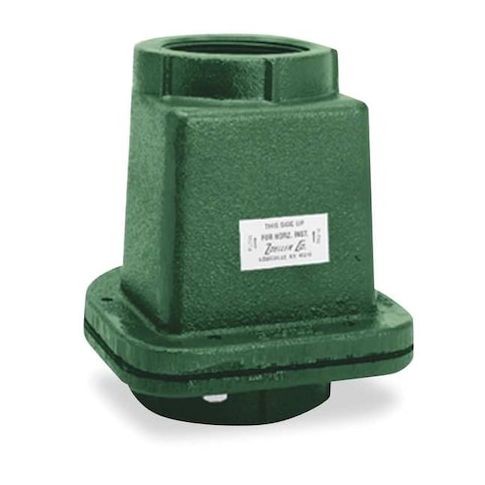

Full Flow Check Valve, Inline Swing, 2 in FNPT x FNPT, Cast Iron Body MPN:30-0152
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0559675
Full Flow Check Valve, Inline Swing, 2 in FNPT x FNPT, Cast Iron Body
ZOELLER 30-0152 is a 2 in full-flow check valve with an inline swing design for water service in pump systems. Designed for one-way flow applications and reverse-flow control, it features a full-flow passage. The valve has a cast iron body, cast iron seat and mechanism, a neoprene seal, and female NPT connections on both ends for inline installation in horizontal or vertical mounting positions.
Key Features:
- Full-flow check valve with a full-flow path and single-flow design
- Inline swing mechanism and body design
- For pump systems handling water
- Body material: cast iron
- Check mechanism material: cast iron
- Seat material: cast iron
- Seal material: neoprene
- Connections: 2 in FNPT x FNPT
- side 1 female NPT, side 2 female NPT
- Cracking pressure: 1 psi
- Maximum operating pressure: 50 psi
- Maximum water pressure: 50 psi at 130 degrees F
- Maximum temperature: 130 degrees F
- Mounting orientation: horizontal or vertical
- Overall length: 6.625 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.90
- Package Height: 7.50
- Package Weight: 10.55
Product info last updated on February 8, 2026 8:27am UTC
Category: Pipes, Valves and Fittings
