Cast Iron Worm Gear Reducer Box Size 133 101 Ratio Flange Input Left Hand Output 56C Frame HdRF133-10/1-L-56C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-56510B18
Cast Iron Worm Gear Reducer Box Size 133 101 Ratio Flange Input Left Hand Output 56C Frame
This cast iron worm gear reducer from Worldwide Electric is designed for heavy-duty applications, featuring a one-piece cast iron housing and tapered roller bearings on the input and output shafts for smooth operation. Pre-filled with synthetic oil and coated with anti-rust primer, these units are built to last. Ideal for use in industrial settings, they can be used to power machinery, conveyors, and other equipment. With a 1-year warranty and UL certification, these reducers offer reliability and peace of mind. Their compact size and customizable center distances make them suitable for a wide range of applications.
Top product features:
- Tapered roller bearings on the input and output shafts
- Embedded double-lip oil seals
- Anti-rust primer applied inside and outside of the gearbox
Top product applications:
- Heavy Industry Equipment
- Machine Tools
- Conveyor Systems

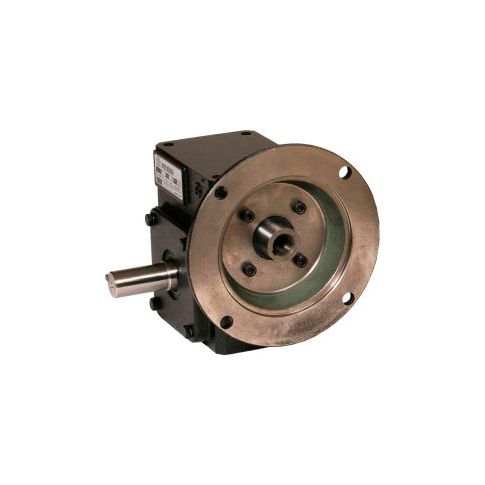

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric offers cast iron aluminum and stainless steel worm gear reducers. Worm gear reducers are among the most compact and least expensive options among gear reducers used to reduce input rotational speed and increase output torque. Cast iron worm gear reducers are available in center distances 1.33 - 3.25 inches in ratio's from 51 to 601. The units have a one piece #fc20 all cast iron housing nema motor quill style input flanges or shaft inputs come pre-filled with synthetic oil and have a 1 year warranty. Features tapered roller bearings on the input and output shafts embedded double-lip oil seals anti-rust primer applied inside and outside of the gearbox air dry special black paint input type flange input output type left hand
Additional Information
- UNSPSC: 26111537
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: TW
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 9.00
- Package Width: 9.00
- Package Height: 8.00
- Package Weight: 18.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Gearboxes and Speed Reducers
