Worldwide Electric Washdown Duty Motor 0.75 HP 1800 RPM 230/460V 56C Frame C-Face with Feet NAWSS34-18-56C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-3387B76

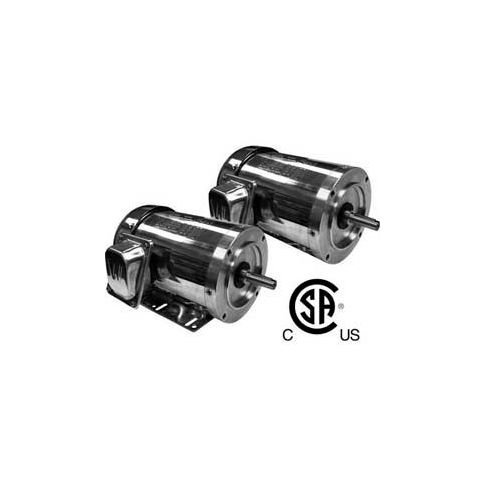

Worldwide Electric Washdown Duty Motor 0.75 HP 1800 RPM 230/460V 56C Frame C-Face with Feet
This 3/4 HP, 1800 RPM washdown duty motor from Worldwide Electric is designed for use in harsh environments, featuring a TEFC (Totally Enclosed Fan Cooled) enclosure and a rigid base for added stability. With double lip seals and a shaft slinger, it provides reliable performance in applications such as food processing, pharmaceutical production, and chemical manufacturing. Its 1.15 service factor and Class F insulation ensure efficient operation and long lifespan. Suitable for 50 Hz operation, this motor is ideal for use in areas with high humidity or exposure to chemicals, making it a reliable choice for demanding industrial applications.
Top product features:
- Suitable for 50 Hz operation with 1.0 service factor
- Double lip seals on both ends of the motor with an additional shaft slinger on the drive-end
- O-rings installed on endbells to eliminate moisture
Top product applications:
- Washdown duty applications in food and beverage processing
- Pumping and mixing applications in chemical plants
- Industrial washing and cleaning applications in manufacturing
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric manufactures a wide range of three-phase stainless steel motors for wash-down high-pressure high-temperature applications including premium efficient ip69k rated bissc/beag certification tefc or tenv close-coupled jm and fractional motor options. 1/2 - 2 hp 1800 rpm 230/460 volt at 60 hz 1.15 service factor tefc enclosure c-face with feet and round body (footless) ip56 protection class f insulation 304 stainless steel frame bracket and junction box stainless steel shaft anti-rust film applied to rotor double lip seals on both ends of the motor with an additional shaft slinger on the drive-end o-ring installed on endbells to prevent moisture intrusion stainless steel cord connector included csa certification premium efficiency (1 - 2 hp)
Additional Information
- UNSPSC: 26101111
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 33.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Definite Purpose Electric Motors
