Worldwide Electric General Purpose Motor ODP 10HP 1800RPM 230/460V 215T Frame Rigid Base F-IGR ODP10-18-215T-GR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97854B31
Worldwide Electric General Purpose Motor ODP 10HP 1800RPM 230/460V 215T Frame Rigid Base F-IGR
This general-purpose motor from Worldwide Electric Corporation is a reliable and efficient solution for various industrial applications. With a 10 HP rating and 1800 RPM speed, it can handle medium-duty tasks with ease. The motor's 230/460V rating makes it suitable for use in a wide range of environments, from manufacturing facilities to commercial buildings. Its robust 215T frame and ODP (Open Drip Proof) design ensure long-lasting performance and protection from dust and debris. Ideal for use in conveyor systems, pumps, and fans, this motor is a versatile and dependable choice for any industry that requires a reliable power source.
Top product features:
- Rigid base design for added stability
- Factory installed grounding ring for improved safety
- 1800 RPM operation for efficient power delivery
Top product applications:
- Pumps and compressors
- Industrial machinery and equipment
- Fans and blowers

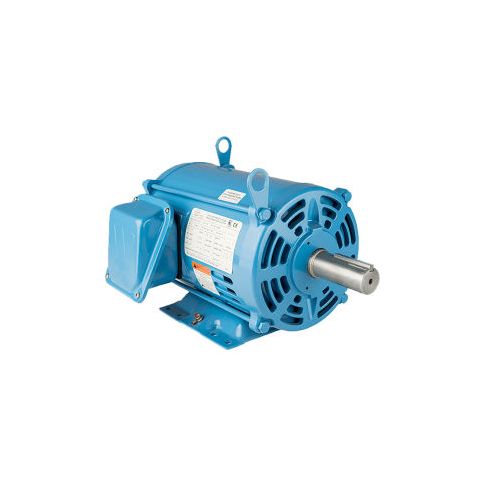

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 21.00
- Package Width: 15.00
- Package Height: 16.00
- Package Weight: 166.00
Product info last updated on April 11, 2026 10:29am UTC
Category: HVAC Electric Motors
