Worldwide Electric General Purpose Motor ODP 15 HP 3600 RPM 200V 215T Frame Rigid Base ODP15-36-200-215T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97851B31
Worldwide Electric General Purpose Motor ODP 15 HP 3600 RPM 200V 215T Frame Rigid Base
Power your operations with the Worldwide Electric Corporation General Purpose Motor, a robust and reliable solution for a wide range of applications. This 15-hp motor delivers 3600 RPM at 200V, making it ideal for use in industrial settings, manufacturing facilities, and commercial buildings. Its 215T frame and ODP design provide a sturdy base for demanding operations, while the rigid base and F1 mounting ensure stable and secure installation. With its high-torque output and efficient operation, this motor is perfect for applications such as conveyor systems, pumps, and compressors, providing a cost-effective and long-lasting solution for your business needs.
Top product features:
- Operates at 3600RPM
- Three-phase design
- Open drip-proof (ODP) enclosure
Top product applications:
- Pumps and Pumping Systems
- Industrial Fans and Blowers
- Conveyors and Material Handling Equipment

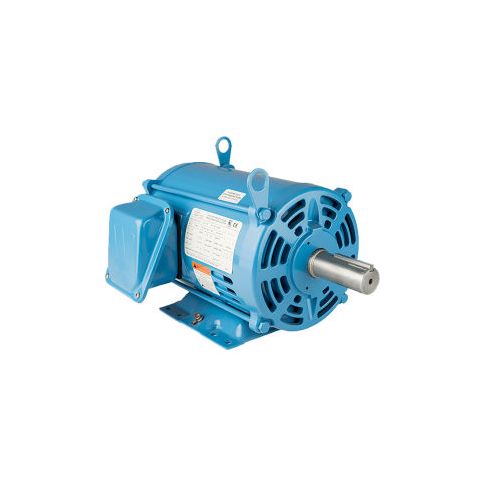

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 22.00
- Package Width: 16.00
- Package Height: 16.00
- Package Weight: 161.00
Product info last updated on February 19, 2026 9:48pm UTC
Category: HVAC Electric Motors
