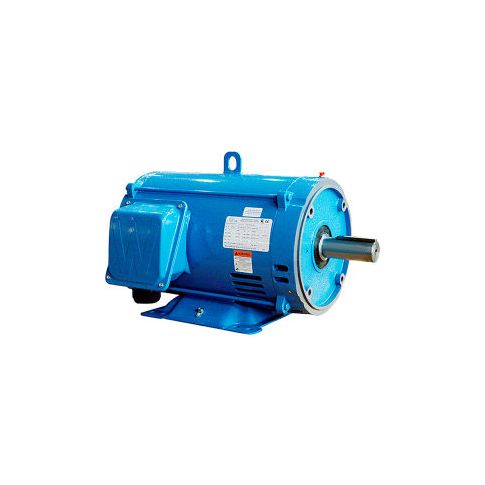

Worldwide Electric General Purpose Motor ODP 25 HP 3600 RPM 230/460V 256TC Frame C-Face w/Feet ODP25-36-256TC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97837B31
Worldwide Electric General Purpose Motor ODP 25 HP 3600 RPM 230/460V 256TC Frame C-Face w/Feet
This high-performance 25HP General Purpose Motor from Worldwide Electric Corporation is designed for a wide range of applications, including industrial processing, manufacturing, and power generation. With a robust 3600 RPM and 230/460V rating, it provides reliable and efficient operation in demanding environments. The motor's 256TC frame and ODP design ensure easy installation and maintenance, while its compact size and durable construction make it ideal for use in tight spaces and harsh conditions. Perfect for industries such as food processing, textiles, and oil and gas, this motor delivers consistent performance and long-lasting durability.
Top product features:
- 25HP power output
- 3600 RPM speed
- 230/460V voltage compatibility
Top product applications:
- Industrial automation systems
- Pumps and pumping systems
- Fans and blowers
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 26.00
- Package Width: 18.00
- Package Height: 18.50
- Package Weight: 291.00
Product info last updated on February 9, 2026 9:50am UTC
Category: General Purpose Electric Motors
