Worldwide Electric General Purpose Motor ODP 40HP 1800RPM 230/460V 324T Frame Rigid Base F-IGR ODP40-18-324T-GR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97834B31
Worldwide Electric General Purpose Motor ODP 40HP 1800RPM 230/460V 324T Frame Rigid Base F-IGR
This General Purpose Motor from Worldwide Electric Corporation is a reliable and efficient solution for a wide range of industrial applications. With a powerful 40HP output and a robust 1800RPM speed, it can handle demanding tasks with ease. Suitable for use in various environments, including manufacturing, material handling, and pumping systems, this motor provides a reliable and long-lasting performance. Its 230/460V rating and 324T frame make it a versatile option for a variety of applications, including conveyor systems, fans, and pumps. Its rigid base and factory-installed grounding ring ensure safe and secure operation.
Top product features:
- Rigid base design for stability
- Factory installed grounding ring for electrical safety
- 40 HP output for high power applications at 1800 RPM
Top product applications:
- Industrial machinery
- Manufacturing equipment
- Pumping systems

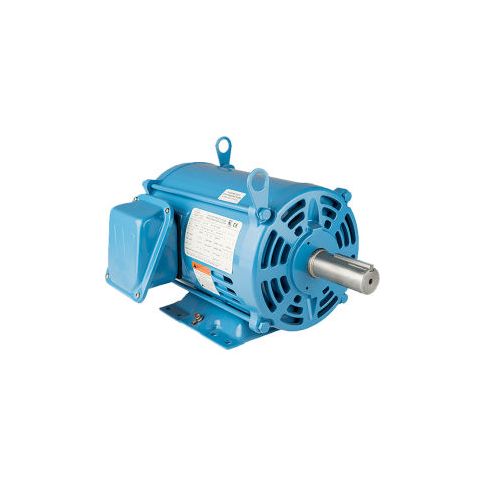

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 31.50
- Package Width: 23.00
- Package Height: 23.00
- Package Weight: 472.00
Product info last updated on February 4, 2026 3:16pm UTC
Category: HVAC Electric Motors
