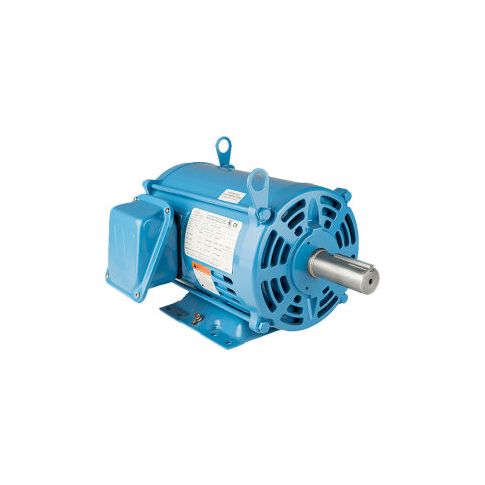

Worldwide Electric General Purpose Motor ODP 7.5HP 1800RPM 230/460V 213T Frame Rigid Base FIGR
This general-purpose motor is designed for a wide range of applications, including industrial and commercial use. With 7.5 horsepower and a speed of 1800 RPM, it can efficiently power equipment and machinery. The motor's 230/460V rating makes it suitable for use in various voltage environments. Its rugged construction and factory-installed grounding ring ensure reliable operation and safety. This motor is ideal for applications such as pumps, fans, and compressors, and is suitable for use in environments with high temperatures and humidity. Its durable design and reliable performance make it a valuable asset for any industry or facility.
Top product features:
- Has a rigid base for stability and support
- Has a factory-installed grounding ring for safety
- Operates at 1800 RPM
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment systems
- Food processing equipment
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 36.00
- Package Width: 19.00
- Package Height: 21.00
- Package Weight: 148.00
Product info last updated on February 5, 2026 5:39am UTC
Category: HVAC Electric Motors
