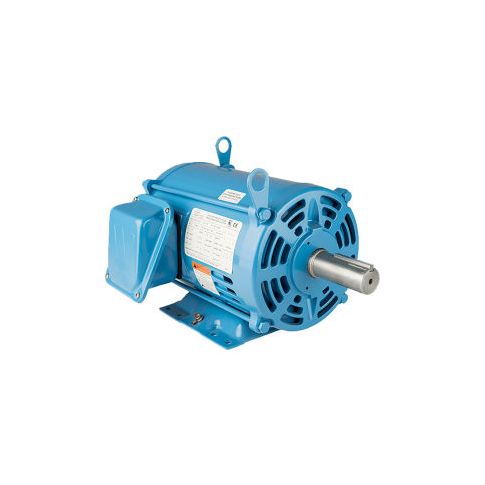

Worldwide Electric General Purpose Motor ODP 30HP 1800RPM 230/460V 286T Frame Rigid Base F-IGR
This high-performance general purpose motor from Worldwide Electric Corporation delivers reliable power for a wide range of industrial applications. Suitable for use in various environments, it features a robust 286T frame and a rigid base for added stability. With a 30 HP rating and 1800 RPM, it provides efficient power for machinery and equipment. Its 230/460V configuration makes it adaptable to various power systems. Ideal for use in factories, warehouses, and manufacturing facilities, this motor offers a cost-effective solution for heavy-duty operations. Its durable design and reliable performance ensure optimal productivity and minimize downtime.
Top product features:
- Three-phase operation
- Rigid base design
- Grounding ring for factory-installed grounding
Top product applications:
- Industrial Automation
- Manufacturing Facilities
- Material Handling Systems
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 27.75
- Package Width: 19.50
- Package Height: 20.50
- Package Weight: 362.00
