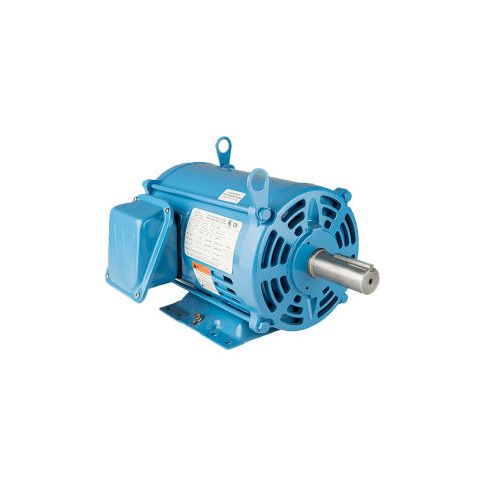

Worldwide Electric General Purpose Motor ODP 25HP 1800RPM 230/460V 284T Frame Rigid Base F-IGR ODP25-18-284T-GR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97825B31
Worldwide Electric General Purpose Motor ODP 25HP 1800RPM 230/460V 284T Frame Rigid Base F-IGR
This 25HP 3-phase general purpose motor from Worldwide Electric Corporation is a reliable workhorse for various applications. Suitable for use in industrial settings, it operates at 1800RPM and can handle 230/460V. The 284T frame and ODP design provide a sturdy base for demanding tasks. With a rigid base and factory-installed grounding ring, this motor is easy to install and maintain. Its flexibility makes it a great fit for a range of industries, including manufacturing, food processing, and more. Its durable construction and efficient operation make it an excellent choice for heavy-duty applications.
Top product features:
- Three-phase operation
- Rigid base for stability
- Grounding ring for safety
Top product applications:
- Pumps and pumping systems
- Fans and blowers
- Conveyors and material handling systems
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 28.00
- Package Width: 20.00
- Package Height: 21.00
- Package Weight: 334.00
Product info last updated on March 16, 2026 10:11am UTC
Category: HVAC Electric Motors
