Worldwide Electric General Purpose Motor ODP 100HP 3600RPM 230/460V 365TSC Frame C-Face w/Feet ODP100-36-365TSC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97814B31
Worldwide Electric General Purpose Motor ODP 100HP 3600RPM 230/460V 365TSC Frame C-Face w/Feet
This General Purpose Motor from Worldwide Electric Corporation is a reliable and efficient solution for a wide range of applications. With 100 horsepower and 3600 RPM, it provides the power and speed needed for demanding tasks. Suitable for use in various industries, including manufacturing, construction, and oil and gas, this motor is a versatile choice. Its 230/460V rating and ODP (Open Drip Proof) design ensure safe and reliable operation. The motor's compact size and C-face mounting make it easy to integrate into existing systems, while its durable construction provides long-lasting performance and reduced maintenance needs.
Top product features:
- Provides 100 horsepower output
- Operates at 3600 revolutions per minute
- Accepts 230/460V voltage input
Top product applications:
- Pumps
- Compressors
- Conveyors

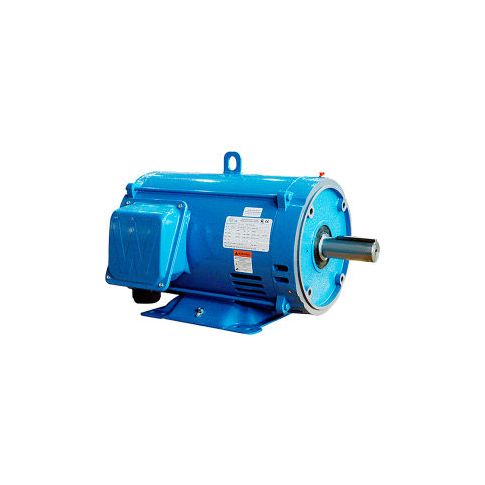

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 34.00
- Package Width: 29.00
- Package Height: 24.00
- Package Weight: 862.00
Product info last updated on February 16, 2026 7:49am UTC
Category: General Purpose Electric Motors
