Worldwide Electric General Purpose Motor ODP 75 HP 1800 RPM 230/460V 365TC Frame C-Face w/Feet ODP75-18-365TC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97813B31
Worldwide Electric General Purpose Motor ODP 75 HP 1800 RPM 230/460V 365TC Frame C-Face w/Feet
The Worldwide Electric Corporation General Purpose Motor is a reliable and efficient solution for a wide range of applications. With a 75HP rating and 1800 RPM, this motor is suitable for various industrial and commercial uses, including pumps, fans, and conveyor systems. Its 230/460V and 365TC frame design provides flexibility and durability, while the ODP (Open Drip Proof) construction ensures safe operation in harsh environments. This motor is ideal for new installations or replacement of existing units, offering a cost-effective and low-maintenance solution for industries that require high-performance and reliability.
Top product features:
- Provides 75 horsepower
- Operates at 1800 RPM
- Supports 230/460V voltage
Top product applications:
- Pumps and water treatment systems
- Industrial machinery and equipment
- Automated conveyor systems

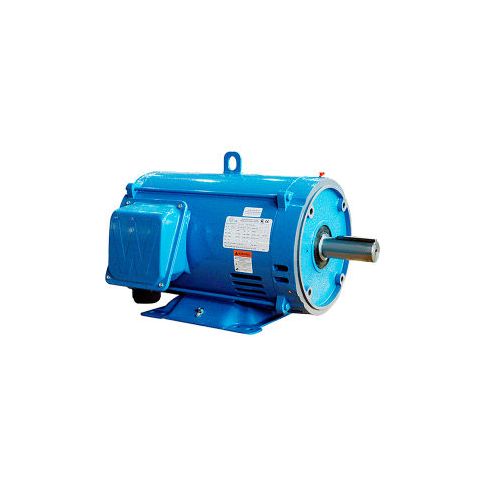

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 34.00
- Package Width: 29.00
- Package Height: 24.00
- Package Weight: 845.00
Product info last updated on February 11, 2026 6:35pm UTC
Category: General Purpose Electric Motors
