Worldwide Electric General Purpose Motor ODP 100 HP 1800RPM 230/460V 404TC Frame C-Face w/Feet ODP100-18-404TC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97811B31
Worldwide Electric General Purpose Motor ODP 100 HP 1800RPM 230/460V 404TC Frame C-Face w/Feet
The Worldwide Electric Corporation General Purpose Motor is a powerful and versatile solution for a wide range of applications. With 100HP and 1800 RPM, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites. Its 230/460V rating and ODP (Open Drip Proof) design make it suitable for use in harsh environments. The motor's compact 404TC frame and C-face with feet make it easy to install and integrate into existing systems. Perfect for applications that require high torque and reliability, this motor is a reliable choice for demanding industrial tasks.
Top product features:
- Provides 100 horsepower of power
- Operates at a speed of 1800 RPM
- Accepts a voltage input of 230/460V
Top product applications:
- Industrial Pump
- Machine Tool
- Conveyor System

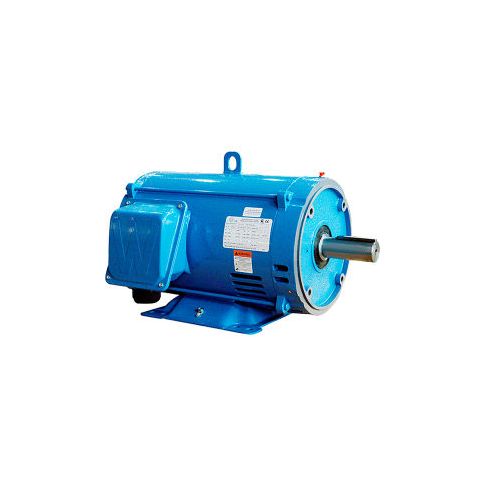

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 37.00
- Package Width: 31.00
- Package Height: 26.00
- Package Weight: 1109.00
Product info last updated on March 2, 2026 2:05am UTC
Category: General Purpose Electric Motors
