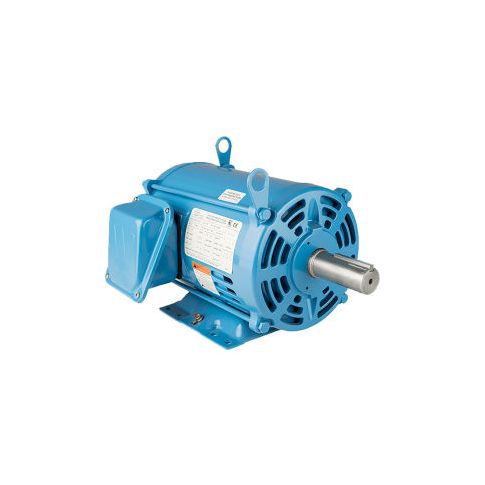

Worldwide Electric General Purpose Motor ODP 3 HP 3600 RPM 200V 145T Frame Rigid Base ODP3-36-200-145T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-97807B31
Worldwide Electric General Purpose Motor ODP 3 HP 3600 RPM 200V 145T Frame Rigid Base
This general-purpose motor from Worldwide Electric Corporation is a reliable and efficient solution for various industrial applications. With a 3 HP rating and 3600 RPM speed, it can handle a range of tasks from pumping and conveying to compressing and powering machinery. The motor's 200V rating and 145T frame make it suitable for use in a variety of settings, including manufacturing facilities, warehouses, and construction sites. Its rigid base and F1 mounting options ensure secure installation and minimize vibrations, resulting in improved performance and extended motor life. Ideal for demanding applications, this motor delivers consistent power and reliability.
Top product features:
- Three-phase operation
- Operates at 3600 RPM
- Rigid base mounting
Top product applications:
- Industrial machinery
- Pumps and compressors
- Conveyor systems
Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric's open drip proof (odp) motors are designed and engineered for use in hvac and refrigeration equipment air compressors and general purpose installations where cooler-running non-enclosed motors are ideal. Worldwide electric premium efficiency odp motors are available in horsepower ratings from 1/2 to 125 and feature ip23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs. Open drip proof (odp) enclosure - rolled steel frame (1/2-50 hp) - cast iron frame (364t-449t) ip23 protection 1.15 sf (1.0 sf for 50 hz applications) class f insulation rigid base (56c-face with removable base) premium efficiency class b temperature rise inverter duty 101 ct / 201 vt (1.0 sf) inverter grade magnet wire meets or exceeds nema mg-1 part 31 pre-drilled and tapped drive endbells on 143t frame and up to accept inpro current diverter rings; no machining required simple and easy installation exclusive double vacuum pressure impregnation (vpi) insulation system double drilled feet to accommodate mounting flexibility (143t-404t) 254t and larger are suitable for f1 to f2 conversion
Additional Information
- UNSPSC: 26101112
- Brand: Worldwide Electric Corporation
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 15.00
- Package Width: 12.00
- Package Height: 11.00
- Package Weight: 48.00
Product info last updated on February 15, 2026 9:25pm UTC
Category: HVAC Electric Motors
