Worldwide Electric Farm Duty Motor 1.5 HP 1800 RPM 115/230V 56H Frame C-Face with Feet FM1.5-18-56HC

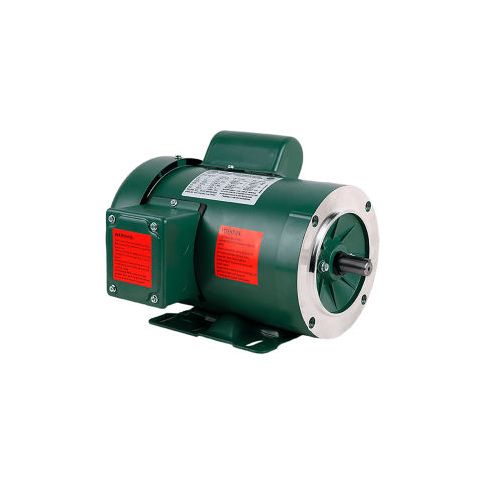

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details. Worldwide electric manufactures high-quality fractional and integral farm duty motors supplying distributors and oems with rugged solutions for agricultural applications. These single-phase motors power grain conveyors feed systems irrigation pumps and ventilation fans providing high torque and long-lasting durability in harsh environments. 1800 rpm totally enclosed fan cooled (tefc) enclosure ip54 protection high torque 1.15 sf class f insulation c-face with feet 56h frame is double punched vacuum pressure impregnation (vpi) system anti-rust film applied to rotor capacitor start / induction run (1/3-1 hp) capacitor start / capacitor run (1.5-2 hp) for reduced amperage and high torque with manual overload improved shaft seal on drive-end protects drive-end bearing from moisture and contaminants
