(MRT411LDC) Multipurpose Tilting Vacuum Lifter, Battery-Powered MPN:MRT411LDC

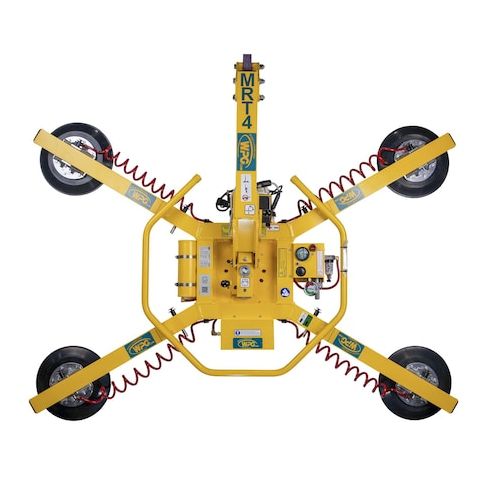

The WOODS POWR-GRIP MRT411LDC Multipurpose Lifter is a battery-powered vacuum lifting device designed for handling flat, smooth materials such as glass. It operates on a 12V DC power source and uses four 11 in. vacuum pads with automatic vacuum monitoring for secure load engagement. The lifter supports manual 360° rotation and 90° tilt to accommodate versatile material positioning and installation needs. With a maximum lifting capacity of 700 lb, it can be configured in multiple pad spreads, allowing adaptation for various panel sizes. The unit meets ANSI, AS 4991, and ASME B30.20 standards for lifting equipment.

Key Features:

• - Type: Battery-powered vacuum multipurpose lifter
• - Application: Handling flat and smooth glass surfaces
• - Load Capacity: 700 lb maximum
• - Load Movement: Manual 360° rotation and 90° tilt
• - Power Source: 12V DC battery operation
• - Vacuum System: Four 11 in. diameter pads with automatic vacuum monitoring
• - Pad Spread Configurations:
  • - Basic: 28-1/4 in. L × 32-3/4 in. W
  • - Extended: 48-1/4 in. L × 67-1/2 in. W
  • - Linear: 78-1/4 in. L × 15-3/4 in. W
  • - Dimensions: 67-1/2 in. L × 36-1/2 in. W overall
  • - Standards: Complies with ANSI, AS 4991, and ASME B30.20 specifications



  Additional Information

  • Country of Origin: US
  • Drop Ship Item: Yes
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 39 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 55.00
  • Package Width: 42.00
  • Package Height: 20.00
  • Package Weight: 246.00
