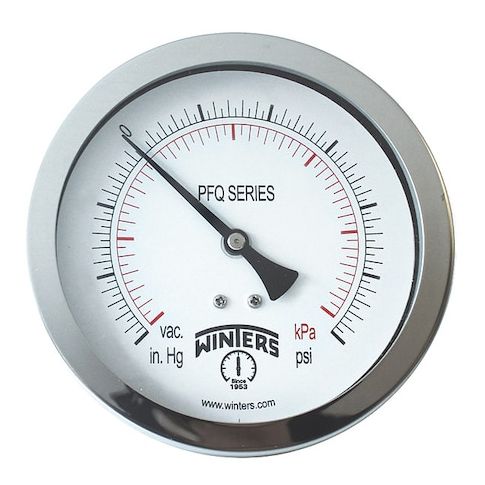

Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Center Back Location MPN:PFQ1275-DRY
Industrial Pressure Gauge, 0 to 400 psi, 4 in Dial, 1/4 in NPT, Center Back Location
This industrial pressure gauge from Winters is designed for high-accuracy measurement in demanding environments. With a 4-inch dial and 1/4 inch NPT connection, it's suitable for a wide range of applications, including hydraulic systems, pneumatic systems, and chemical processing. The gauge features a stainless steel case and polycarbonate lens, ensuring durability and resistance to corrosion and impact. Its center back location and field-fillable design make it easy to install and maintain. With its high accuracy and robust construction, this gauge is ideal for use in industries such as manufacturing, oil and gas, and power generation.
Top product features:
- Center back location of the process connection
- Polycarbonate lens material for durability and clarity
- Dry dampening feature is not available
Top product applications:
- Industrial Pressure Gauge in oil and gas exploration to measure wellhead pressure
- Industrial Pressure Gauge in chemical processing to monitor tank pressure
- Industrial Pressure Gauge in manufacturing to measure hydraulic system pressure
Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 93 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 4.80
- Package Height: 3.60
- Package Weight: 0.75
Product info last updated on February 2, 2026 3:05pm UTC
Category: Pressure and Vacuum Measuring
